ADASTRA 8" 6" 5" Home Cinema SURROUND SOUND CEILING SPEAKER 952.1 B

CEILING SPEAKER 2 WAY EASY FIT SURROUND SOUND SONOS 952.1 B

These ceiling speakers are great for surround sound, hi-fi or offices bars etc.

Easy to fit with dog ear mounts.

Compatible with 8 ohm Sonos Amplifier

Please check the dimensions below for actual overall diameter as 8" refers to the driver size.

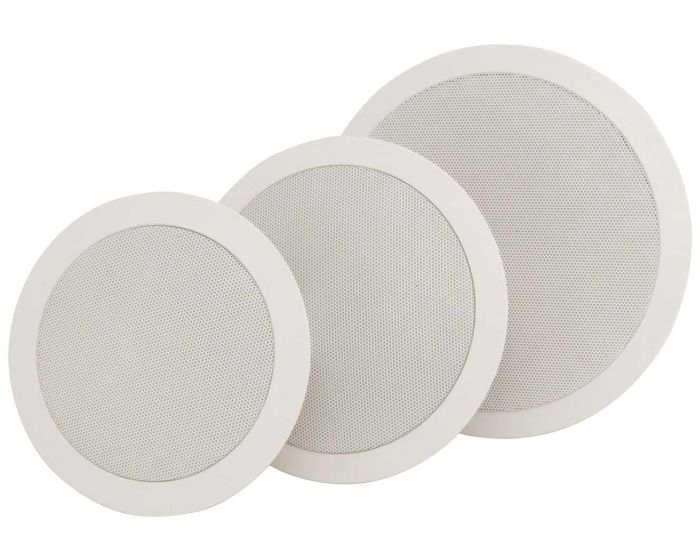

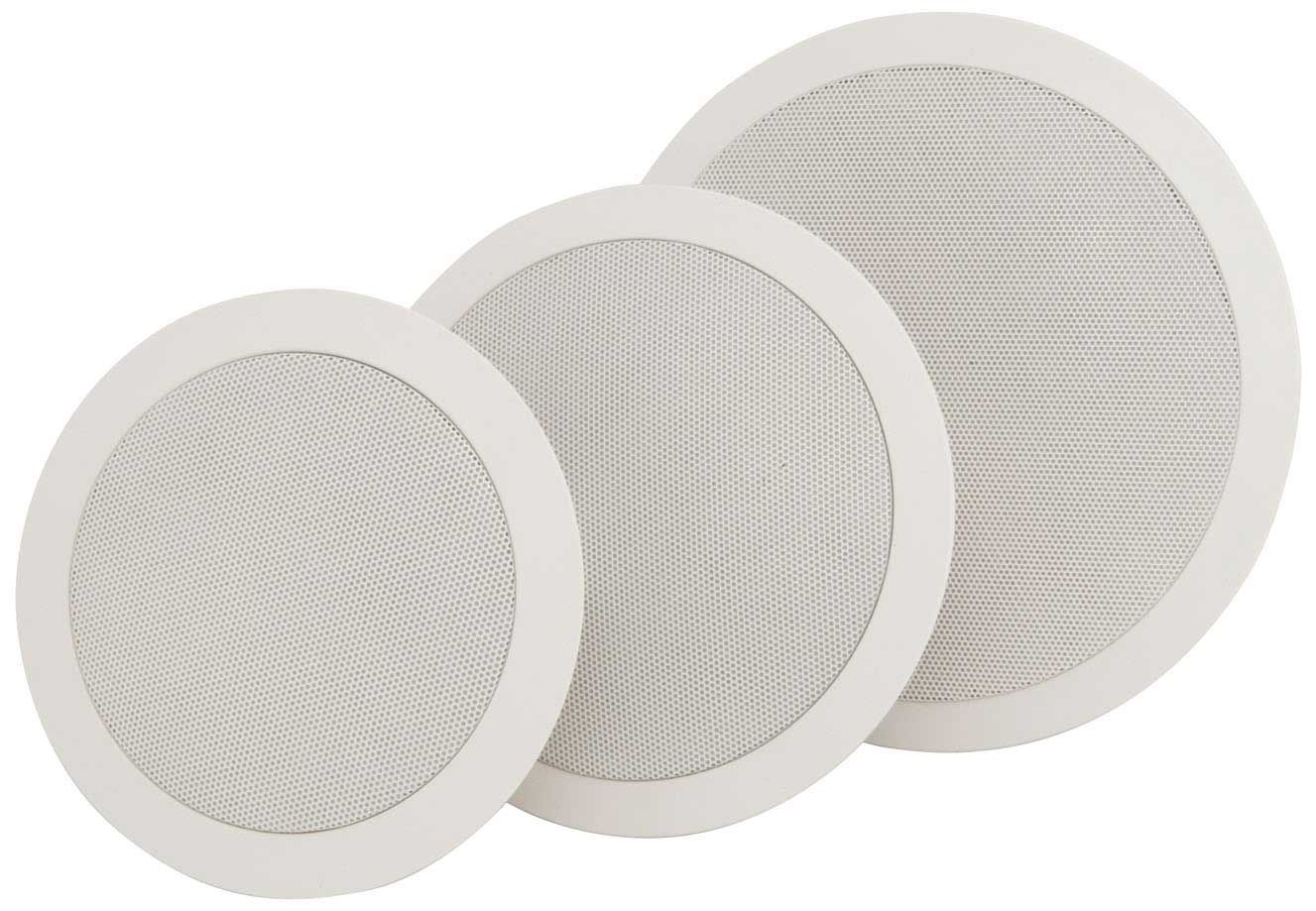

2-way quick fit ceiling speakers with PP mica bass driver and directional dome tweeter giving an excellent frequency response, all housed in a white polymer frame with metal grille.

Features

Rotary selector switch for 100V line tappings or 8 ohms
Fitted with "dog-ear" mounts for fixing to ceiling tiles 1-20mm in thickness
Spring loaded terminals for easy connection

Adastra Cc5v - Cc5v Ceiling Speaker With Control 5.25"

Technical Specifications

Dispersion angle: 160Deg
Woofer: 133mmDia (5.25")
Tweeter: 38mmDia (1.5")
Frequency response: 85Hz - 20kHz
Power max: 8 Ohms: 80W
Power rms: 8 Ohms: 40W
Power rms: 100V line: 20W
Cutout: 166mmDia
Mounting depth: 84mm
SPL @ 1W/1m: 84dB (+/-2dB)
Tappings: 2.5, 5, 10, 15, 20W & 8 ohms
Dimensions: 88 x 202mmDia
Weight: 1.15kg

Adastra Cc6v - Cc6v Ceiling Speaker With Control 6.5"

Technical Specifications

Dispersion angle: 160Deg
Woofer: 165mmDia (6.5")
Tweeter: 38mmDia (1.5")
Frequency response: 70Hz - 20kHz
Power max: 8 Ohms: 100W
Power rms: 8 Ohms: 50W
Power rms: 100V line: 20W
Cutout: 193mmDia
Mounting depth: 90mm
SPL @ 1W/1m: 87dB (+/-2dB)
Tappings: 2.5, 5, 10, 15, 20W & 8 ohms
Dimensions: 100 x 227mmDia
Weight: 1.25kg

Adastra Cc8v - Cc8v Ceiling Speaker With Control 8"

Technical Specifications

Dispersion angle: 160Deg
Woofer: 200mmDia (8")
Tweeter: 44mmDia (1.75")
Frequency response: 60Hz - 20kHz
Power max: 8 Ohms: 120W
Power rms: 8 Ohms: 60W
Power rms: 100V line: 50W
Cutout: 238mmDia
Mounting depth: 95mm
SPL @ 1W/1m: 89dB (+/-2dB)
Tappings: 10, 20, 30, 40, 50W & 8 ohms
Dimensions: 102 x 271mmDia
Weight: 1.85kg

FIG 8 Speaker Cable

PLEASE NOTE: Speaker Cable is priced and supplied PER 10 METER.

Technical Specifications

CSA: 0.66mm²
Strands: 2 x (13 x 0.18mmØCu + 13 x 0.1mmØCCA)
Dimensions: 2.5 x 5.0mm
Current: 6.0A max
Sheath: White
Polarity: Black
