Adastra Com230 Paging Station With 2 X 30w Amplifier

Adastra Com230 - Com230 Paging Station With 2 X 30w Amplifier

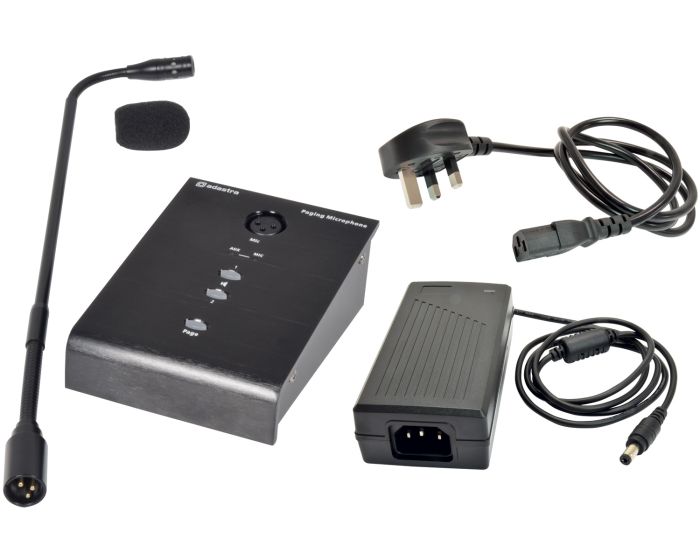

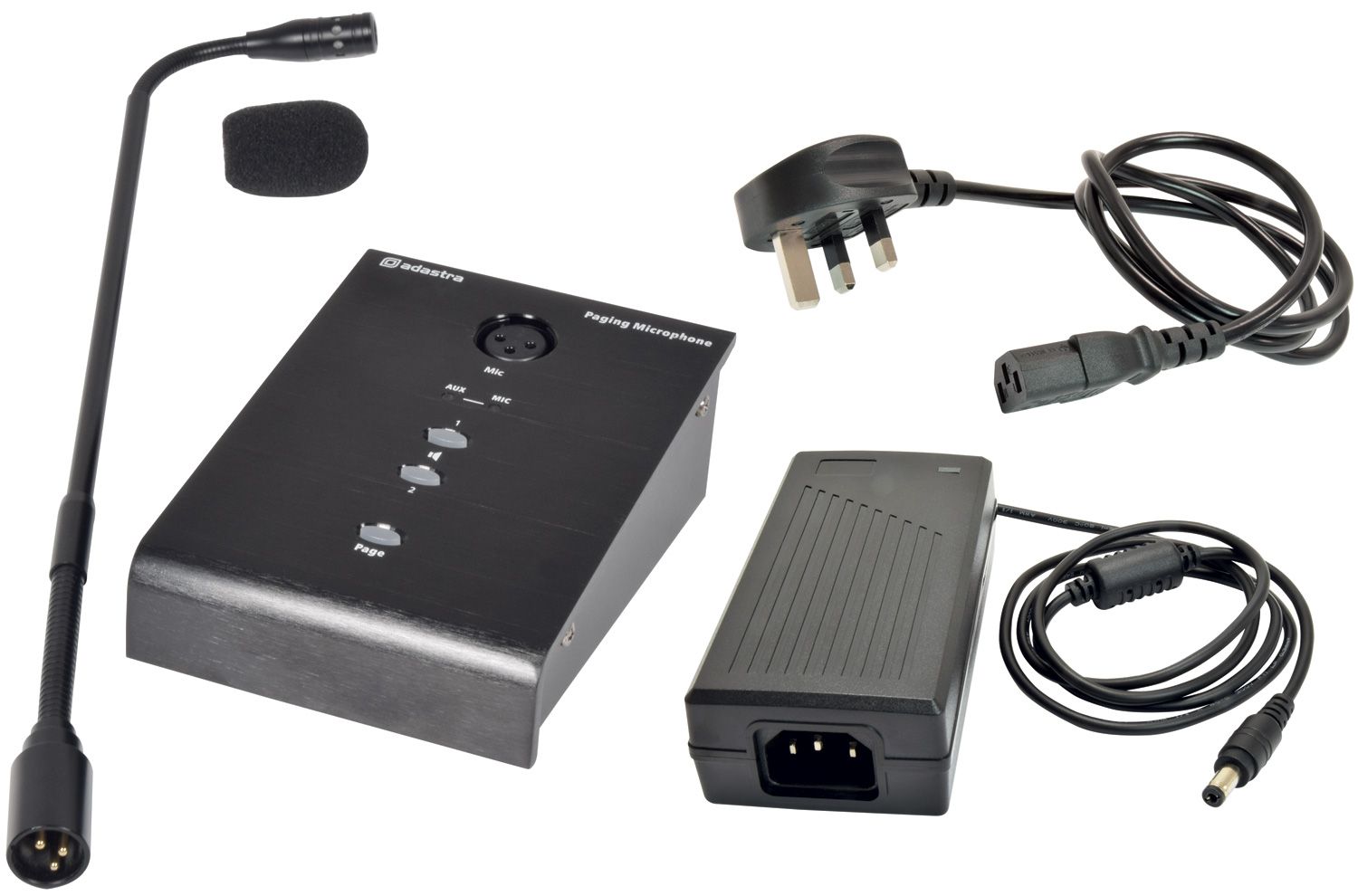

Desktop paging station with gooseneck microphone mounted via XLR into a base unit with a built-in dual amplifier. Each amplifier output has screw terminal speaker connections and can power a single 8 Ohm speaker or two 8 Ohm speakers wired in parallel (4 Ohm minimum load each output) and can be operated as a stereo Left + Right amplifier or as 2 separate zones. An AUX input on 3.5mm jack can accept a stereo line input for background music with its own volume control and is present on both channels permanently. A separate volume control governs the microphone level and there is a pre-set override that temporarily mutes the AUX input when announcements are being made. The paging process involves selecting one or both output channels via the buttons on the top panel and then pressing the "Page" button, which gives the option of paging just a single area or all areas where the speakers are installed. A simple and easy-to-use solution for where space is limited or an uncomplicated paging system is required.

Features

• Independent volume controls for AUX and MIC
• Independent paging to each speaker output
• In-line low voltage DC power adaptor supplied

Technical Specifications

• Power supply : 16Vdc, 4A power adaptor (included)
• Output power @ 4 Ohms : 2 x 30W
• Output power @ 8 Ohms : 2 x 15W
• Auxiliary input : Stereo 3.5mm jack
• Speaker outputs : Screw terminals (removeable Euroblock)
• Dimensions : 450 x 140 x 100mm (assembled)
• Weight : 552g
• Microphone : connector : XLR
