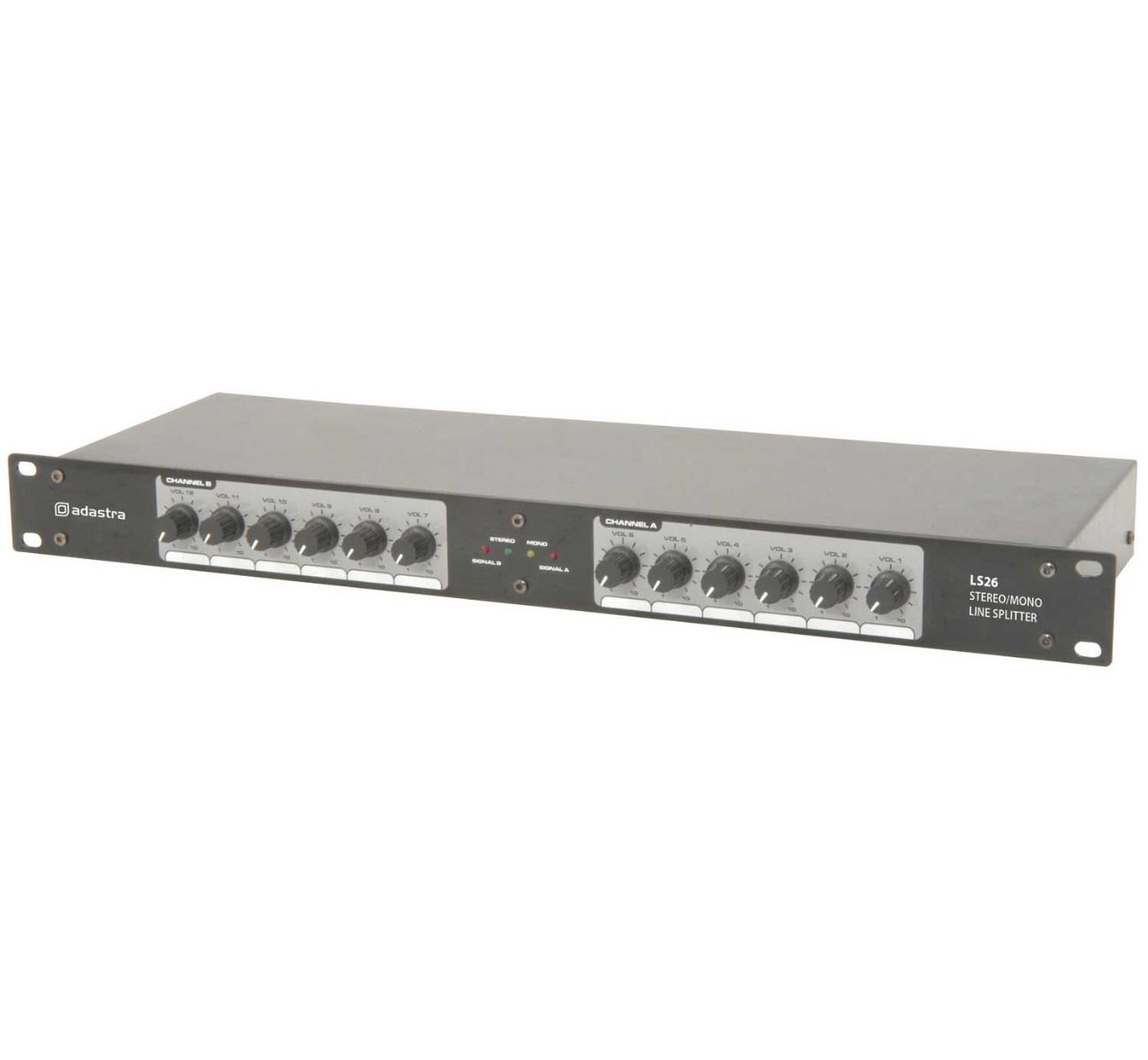

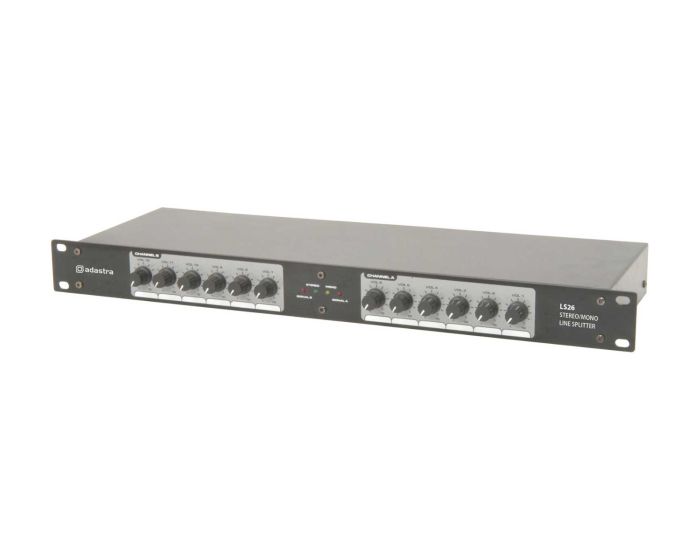

Audio Distribution Line Splitter, Adastra LS26 953.022UK

Adastra Ls26 - Ls26 Line Splitter 1:12 / 2:6

Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups.

Features

• Up to 12 outputs from 1 or 2 inputs
• Individual volume control for each output
• Input peak LEDs

Technical Specifications

• Power supply : 115/230Vac, 50/60Hz (IEC)
• Inputs : A & B, (6.3mm jack)
• Outputs : 1 - 6 & 7 - 12 (6.3mm jack)
• Input impedance : 20k Ohms
• Output impedance : 220 Ohms
• Frequency response : 20Hz - 20kHz, +0/-1dB
• Signal to noise ratio : >95dB
• THD : <0.008%
• Dimensions : 483 x 44 x 170mm
• Weight : 2.0kg
