Adastra Cs4 Call Station For Rm244v

Adastra Cs4 - Cs4 Call Station For Rm244v

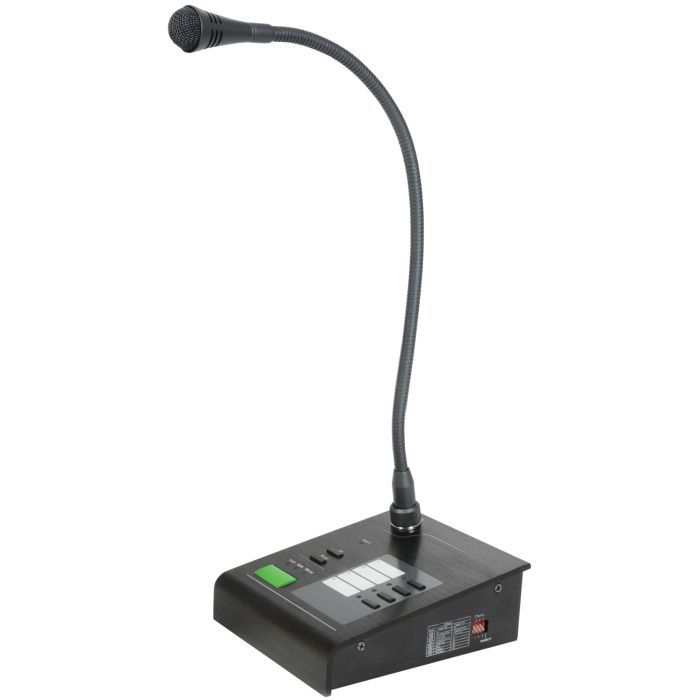

Paging microphone with call station base for use with the RM244V or RM4460 mixer-amps. Connected via RJ45 for both signal and power to simplify wiring. Zone assign buttons enable calling to one or all zones. Pressing the page button mutes all audio playback and plays one of 8 selectable chimes, opening the microphone to the selected zone(s). Pressing the reset button mutes the microphone and resumes background music playback to all zones. This system offers 4-zone paging without the additional cost of using a quad amplifier.

Features

• 8 selectable chime settings
• Assignable to individual or all 4 zones
• Up to 1km remote wiring over CAT5
• 3.5mm aux input
• Supplied with 1m RJ45 patch lead
• For use with the RM244V amplifier (953.244UK)

Technical Specifications

• Dimensions : 460 x 140 x 115mm
• Weight : 670g
• Max. connection length : 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
• Connectors : RJ45 to amplifier, 24Vdc power jack, 3.5mm aux in
• Power supply : 24Vdc, 500mA from RJ45 or optional adaptor
• Output impedance : balanced : 600 Ohms
• Output level : 10dBV
• Input level : Mic: -46dBV, Aux: -10dBV
• Input impedance : Mic: 600 Ohms, Aux: 50k Ohms
• S/N ratio : -60dB (all channels selected)
• Interface : RS-485 control
• Zone assign : 4 zones or all selectable
• Frequency response : -3dB : 150Hz - 22kHz
• Capsule : Back electret condenser
• Polar pattern : Cardioid
• Controls : Aux/Mic/Chime levels, chime DIP switches, zone/page buttons
