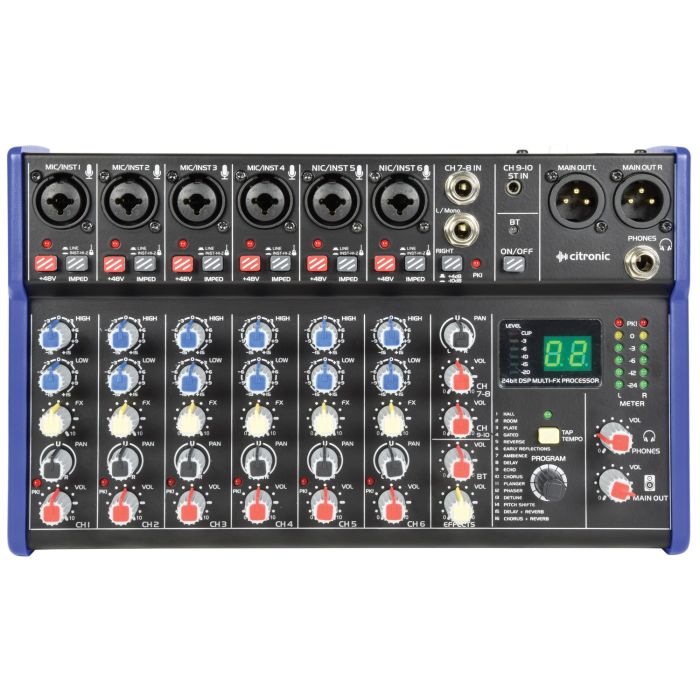

Citronic Csd-8 Compact Mixer With Bt Receiver + Dsp Effects

Citronic Csd-8 - Csd-8 Compact Mixer With Bt Receiver + Dsp Effects

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls. The Bluetooth pairing button enables wireless connection to a smart phone or tablet for playback. All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

Features

• Bluetooth pairing for smartphone or tablet
• 16 program, 24-bit DSP effects engine
• Individually switchable +48V phantom power
• Supplied with DC power adaptor

Technical Specifications

• Power supply : 5Vdc 1A (adaptor included)
• Power consumption max. : 5W
• EQ: low : +/-15dB @ 80Hz
• EQ: high : +/-15dB @ 12kHz
• Phantom power : +48V individually switchable (XLR inputs only)
• Input impedance : mic : 2k Ohms
• Input impedance : instrument : 1M Ohms
• Input impedance : line : 20k Ohms
• Audio source : Bluetooth receiver
• Bluetooth version : 2.1 + EDR
• Frequency response : 20Hz - 20kHz (+/-0.5B)
• THD +N :
