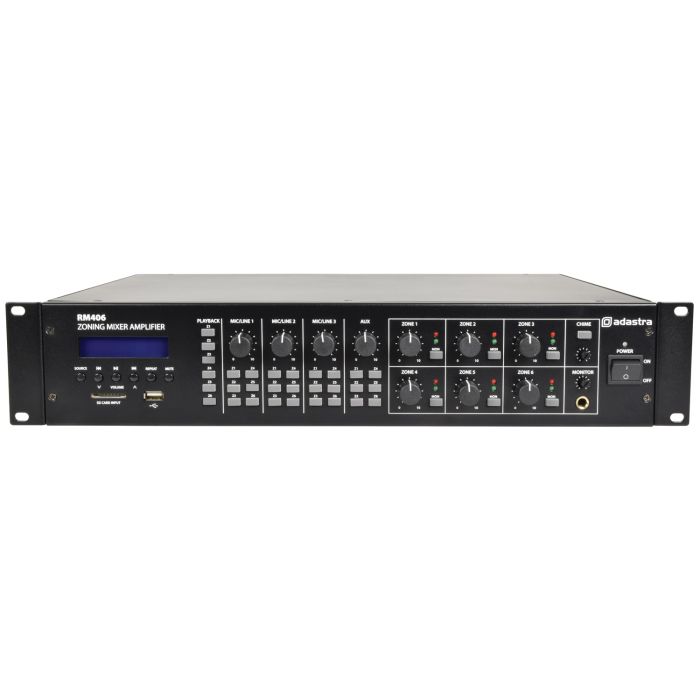

Adastra Rm406 Mixer Amplifier 100v 6 X 40w + Usb Sd Fm Bluetooth

Adastra Rm406 - Rm406 Mixer-amp 100v 6 X 40w + Usb/sd/fm/bt

Zone mixer-amplifier with 6 x 40W class D power section for 100V or 4/8 Ohms speakers. Each zone can be monitored from the front panel via a headphone output with volume control. 3 mic/line inputs, 1 aux input and an integral USB/SD/FM player with Bluetooth receiver can be matrix switched to any of the 6 zones independently. Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts. Designed for multi-room systems requiring different audio sources.

Features

• Integral USB/SD/FM audio player
• Bluetooth with programmable ID
• 100V or 4/8 Ohms operation
• 6 independent output zones
• 3 mic/line and 1 auxiliary input
• Mic priority and chime functions
• Switchable +20V phantom power
• 24V mute contacts
• Monitor headphones output

Technical Specifications

• Power supply : 170-264Vac, 50Hz (IEC)
• Power output : 6 x 40W rms
• Audio source : USB/SD/FM/BT audio player
• Amplifier : construction : Class D + transformer outputs
• Inputs : 3 x mic/line (XLR/jack), auxiliary 2 x RCA
• Zone outputs: line : 6 x RCA (mono)
• Zone outputs: speaker : 6 x terminal outputs 100V / 8 Ohms / 4 Ohms / Com
• Phantom power : +20V switchable to each XLR
• Monitor outputs : 6.3mm stereo phones, 2 x RCA line
• Mute : +24V relay contacts
• THD :
