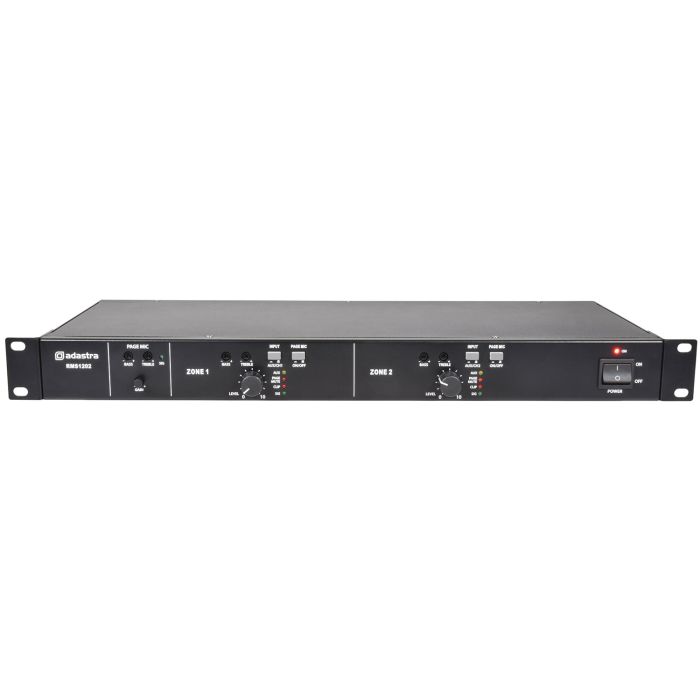

Adastra Rms1202, PA Slave Amplifier 100v 2x 120w

Adastra Rms1202 - Rms1202 Amplifier 100v - 2 X 120w

Multi-channel 100V slave amplifier with independent outputs for 100V or 4-16 Ohm speakers. Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, providing the option of the same input to several of the amplifier channels if required. A paging microphone input is provided for voice alerts and a 24V mute terminal can be connected to an alarm panel for emergency evacuation override. Class D circuit design and efficient toroidal transformers have enabled a design which fits into a 1U rack-mount housing. The RMS-series amplifiers can be applied as high power slave units or equally as a fully independent zoning system for a multi-room installation.

Features

• Outputs for 100V or 4-16 Ohm speakers
• Separate channel inputs and optional global aux input
• Paging microphone input with vox override
• Independent high efficiency class-D amplifiers
• Switchable +20V phantom power for paging microphone
• 24V contacts for emergency muting

Technical Specifications

• Power supply : 170-264Vac, 50/60Hz (IEC)
• Auxiliary input : L+R RCA
• Mic controls : Gain, Bass, Treble & Vox (rear panel)
• Output controls : Level, Bass, Treble & Ch/Aux switch
• Microphone input : Balanced XLR (rear panel)
• Phantom power : +20V switchable (paging mic)
• Emergency control : 24V mute contacts (Euroblock terminal)
• Power rms : 100V line : 2 x 120W
• Power rms : 4 Ohms : 2 x 120W
• Output connection : 2 x 100V or 4 Ohm (Euroblock terminal)
• Weight : 5.04kg
• Dimensions : 482 x 252 x 42mm
• Channel inputs : 2 x L+R RCA or balanced terminal
• Auxilia
