Adastra Um30 30w Compact 100v Line Mixer Amplifier Background Music

Adastra Um30 - Um30 Compact 100v Mixer-amp

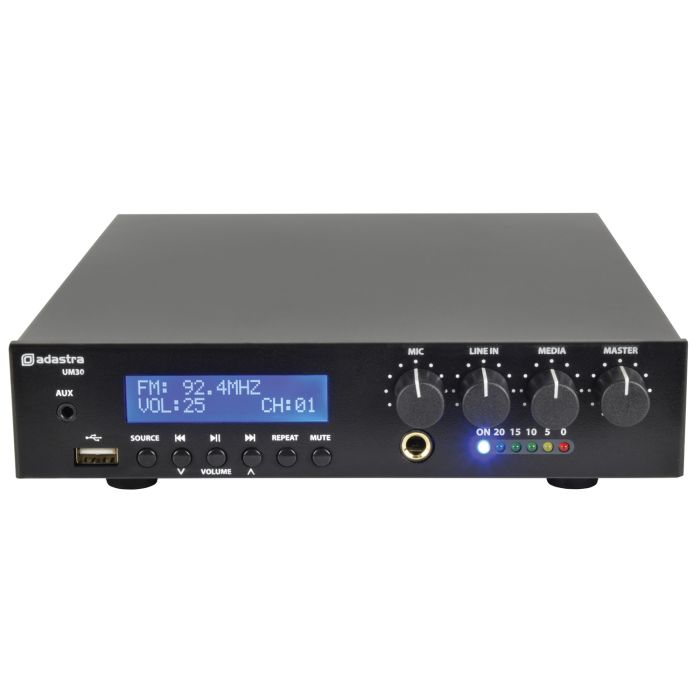

100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.

Features

• Ultra compact form factor
• Efficient class D amplifier design
• Internal USB/FM/BT audio player
• 100V line or 8 Ohms operation
• Bluetooth with programmable ID

Technical Specifications

• Power supply : 170-264Vac, 50Hz (IEC) or 24Vdc
• Amplifier : construction : Class D + transformer output
• Audio source : Internal USB/FM/BT player
• Inputs : 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
• Line output : 2 x RCA (mono)
• Speaker outputs : Screw terminals - 100V / 8 Ohms / Com
• DC power : 24Vdc screw terminals
• Mute : 24V relay contacts
• THD :
