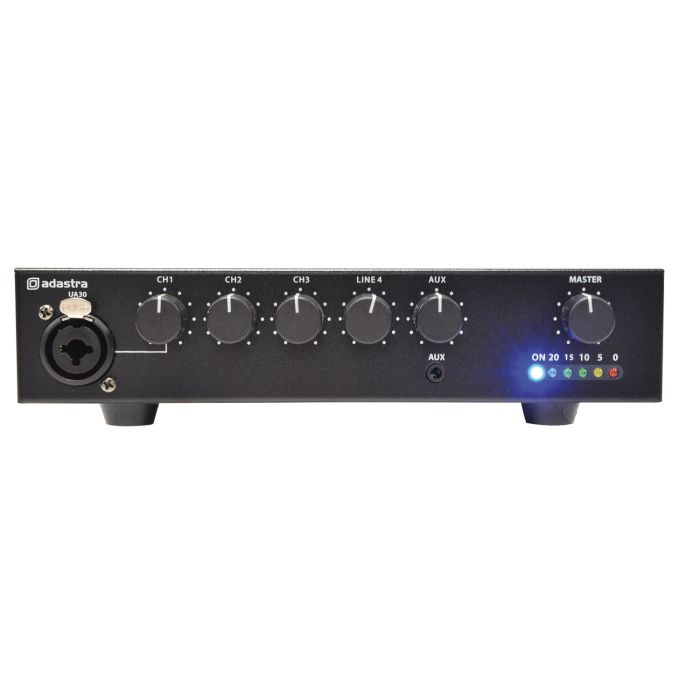

Adastra Ua30 Compact 5ch 100v Mixer Amplifier

Adastra Ua30 - Ua30 Compact 5ch 100v Mixeramp

100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

Features

• 24V fire alarm mute contacts
• Supplied with hardware for rack-mounting 2 units
• 5 input channels
• 100V line or 8 Ohms operation
• Switchable +20V phantom power CH1

Technical Specifications

• Power supply : 170-264Vac, 50Hz (IEC)
• Amplifier : construction : Class D + transformer output
• Inputs : Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
• Line output : 2 x RCA (mono)
• Speaker output : Euroblock terminals: 100V / 8 Ohms / Com
• Mute : 24V relay contacts
• THD :
