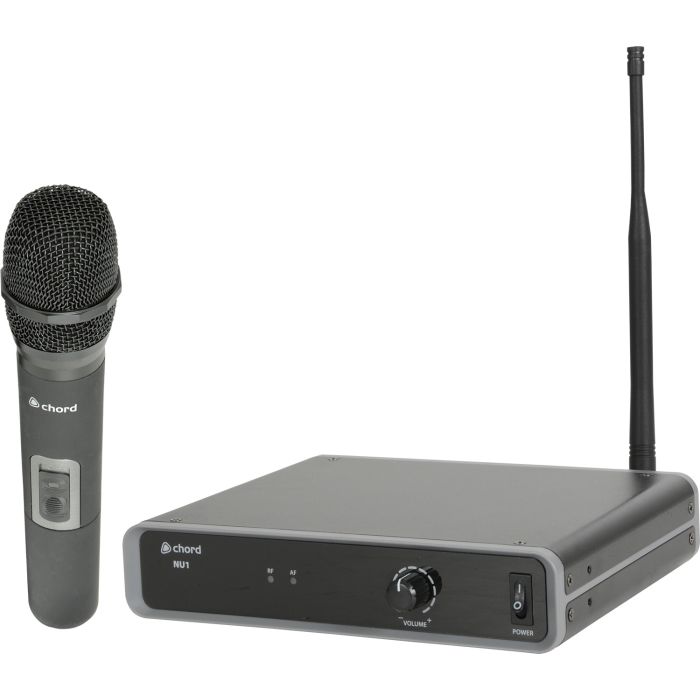

Chord NU1-H UHF Wireless Handheld Mic System (863.1MHz)

Chord Nu1-h - Nu1 Handheld Uhf System 863.1mhz

he Chord NU1-H is a UHF wireless handheld microphone system operating at 863.1MHz, designed for live performances, presentations, and public speaking engagements. It features a dynamic handheld transmitter with a high-quality capsule, ensuring clear and reliable audio transmission. The system offers a range of up to 60 meters, allowing for freedom of movement on stage or during events. The receiver is rack-mountable, facilitating seamless integration into professional audio setups. With a frequency response of 50Hz to 18kHz and a signal-to-noise ratio greater than 105dB, it delivers crisp and clear sound. The system operates on 2 x AA batteries for the transmitter and includes a mains adaptor for the receiver. Its license-free operation in the UK and EU ensures hassle-free usage.

Wireless microphone system with fixed UHF handheld transmitter and half rack-width receiver. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories.

Features

• Rack-mounting accessories included
• Supplied with mains adaptor and 2 x AA batteries
• Pilot tone & mute circuit for stable signal
• Licence free operation in UK & EU

Technical Specifications

• Power supply : 12-18Vdc, 350mA (mains adaptor included)
• Batteries : 2 x AA (for transmitter - included)
• Range : 60m
• Signal to noise ratio : >105dB
• THD : 85dB
• Output impedance : 2.2k Ohms
• Dimensions : receiver : 44 x 198 x 190mm
• Weight : receiver : 710g
• Output level : 400mV (balanced), 200mV (unbalanced)
• Dimensions : transmitter : 243 x 48mmDia
• Weight : transmitter : 238g (no battery)
• Carrier frequency : 863.1MHz
