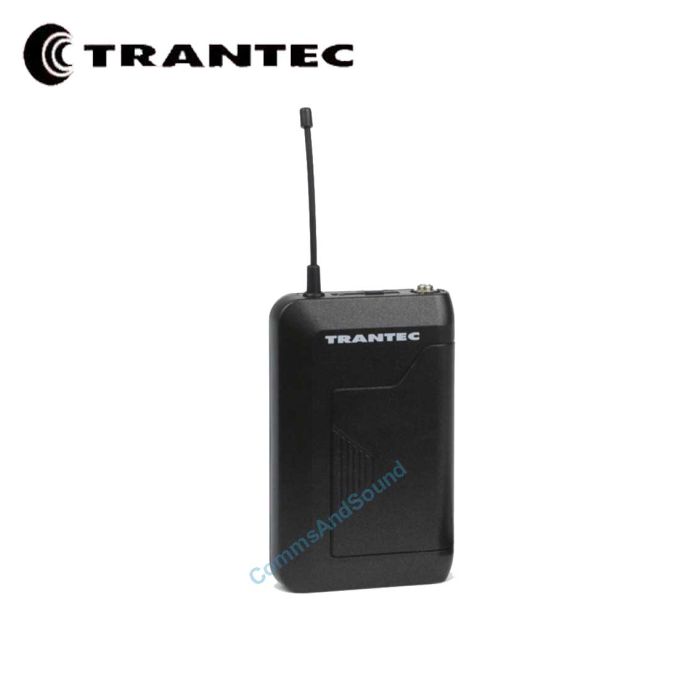

Trantec S4.10 Belt Pack Transmitter Only S4.10-BTX-EB-WD4 ch70

Trantec S4.10 Belt Pack Wireless Transmitter Only S4.10-BTX-EB-WD4 ch70,

Trantec S4.10 wireless Belt pack is the next generation of 10-channel ch70 UHF wireless, replacing the Trantec S4.16 range. S4.10 offers the same quality and functionality as its predecessor. Lapel microphones connect to body pack transmitters. The body pack transmitter, and desktop receiver use infrared signals to syncronise.

The S4.10 body pack transmitters can be used on any of the pre-programmed frequencies.

• 16 selectable frequencies available
• Up to 10 simultaneous channels
• Fully synthesised PLL quartz tuning technology
• Receiver LED show AF peak level, RF level & diversity channel A or B
• Diversity operation with detachable antenna
• Professional metal enclosure
• 19” rack mount option for one or two receivers

Belt Pack Transmitter Specifications

• RF Carrier Power 10mW
• Audio Frequency Response 50 Hz – 1.5kHz
• Audio Input Level -6 dBV (maximum), mic gain 0dB
• Battery Life Approx. 10 hours
• Power Supply 1 AA size alkaline battery, 1.5V
• Finish Resin, coating
• Dimensions 62(W) x 100(H) x 25(D)mm (With clip)
• Weight 85g with battery
