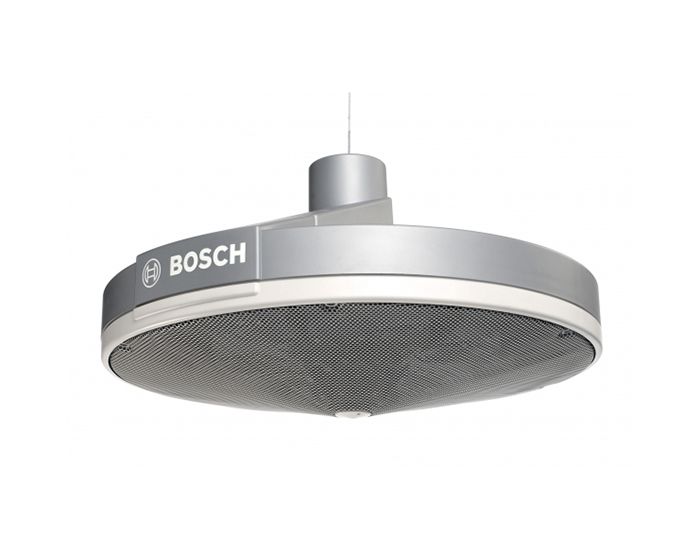

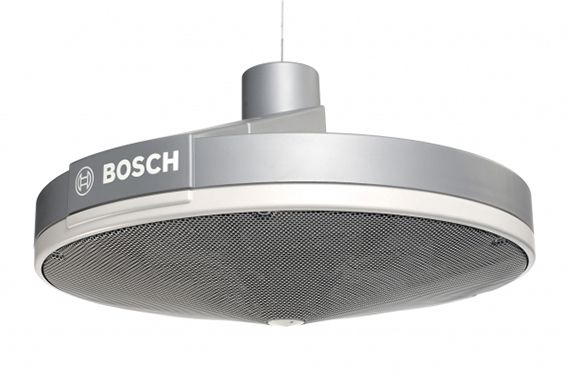

Bosch Hemi-Directional Pendant Loudspeaker, 100W LS1-OC100E-1

Bosch Hemi-Directional Pendant Loudspeaker, 100W LS1-OC100E-1

The Bosch Hemi-Directional Loudspeaker is an easy to install, innovative loudspeaker which projects consistent and high-quality sound, ensuring superb reproduction of background music and high speech intelligibility for paging or emergency calls. The speakers opening angle and high sound pressure level allows it to cover at least 700 m2 , making it extremely suitable for indoor high-ceiling areas like warehouses, transport and exhibition halls, mega stores, and swimming pools. The loudspeaker is made of high-impact ABS TSG, self-extinguishing according to class UL 94 V 0 and with the highest flame retardant rating (UL 94 5VA). The loudspeaker has a white and silver finish; the metal grille has a silver finish. All metal parts are zinc plated. Drivers This acoustically innovative loudspeaker accommodates 14 drivers in combination with advanced positioning and filtering.

• For large area, high-ceiling applications
• Optional bracket for fixed mounting
• Self-restoring tweeter overload protection
• Provision for internal mounting of the optional line/loudspeaker supervision board
• EN 54-24 certified
• Coverage angle H x V (-6 dB

• Product EAN 8717332769629
• Colour White aluminum / Pearl dark gray
• Diameter (mm) 150
• Frequency Response (Hz) 60 Hz to 20 kHz
• Impedance (Ohms) 8
• Peak Music Power (W) 150
• Power RMS (W) 100
• SPL (dB @ 1 m) 110 / 90 dB
• Tappings 100 50 25 W
• Weight (kg) 27 kg (59.52 lb)

• For large area, high-ceiling applications
• Optional bracket for fixed mounting
• Self-restoring tweeter overload protection
• Provision for internal mounting of the optional line/loudspeaker supervision board
• EN 54-24 certified
• Coverage angle H x V (-6 dB
