Bosch LBB1925/10 Plena System 6 Zone Pre-amplifier

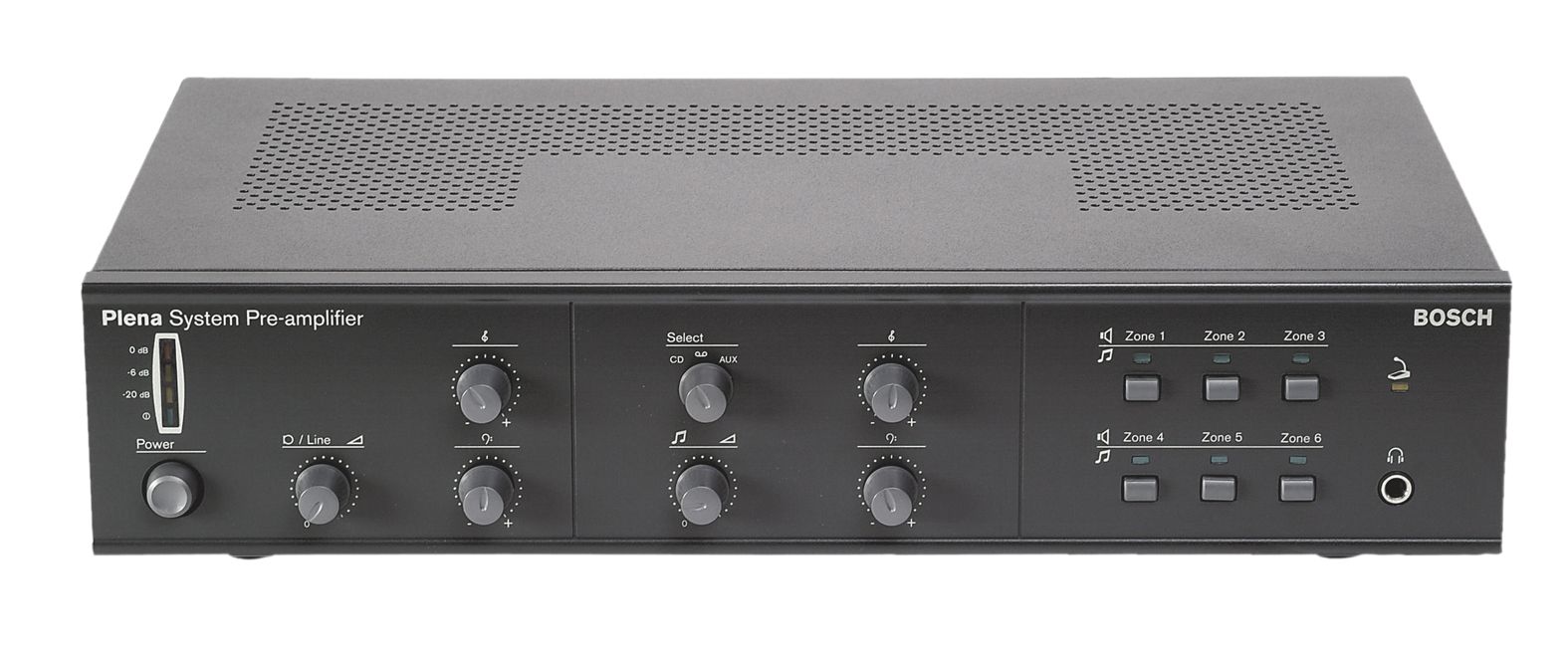

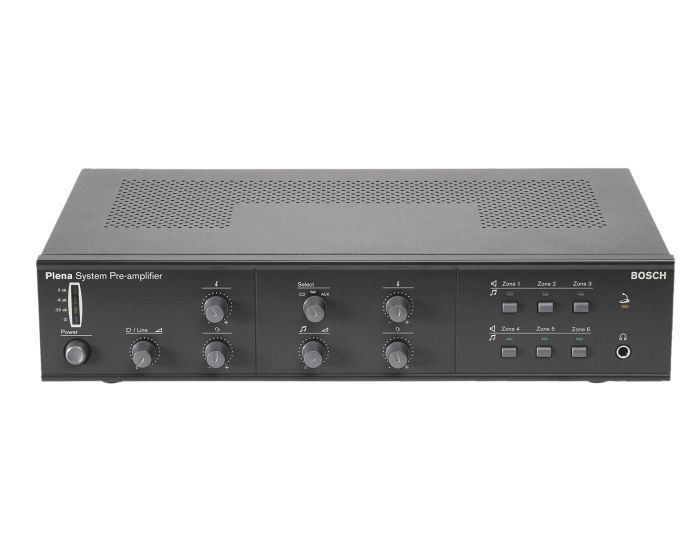

The Plena system pre-amplifier is a high-performance, versatile call and BGM (background music) mono preamplifier, capable of fulfilling a wide variety of public address requirements. It provides dual channel operation for calls and BGM simultaneously for up to a maximum of six different zones, using two Plena booster amplifiers. In addition, single channel operation is possible with only one Plena Amplifier.
Image is guide only
Product Description
The Plena system pre-amplifier is a high-performance, versatile call and BGM (background music) mono preamplifier, capable of fulfilling a wide variety of public address requirements. It provides dual channel operation for calls and BGM simultaneously for up to a maximum of six different zones, using two Plena booster amplifiers. In addition, single channel operation is possible with only one Plena Amplifier.
Features- 6 Zone system pre-amplifier, with single or dual channel operation
- Universal input for microphone/line, with speech optimized tone control
- Three inputs for BGM selection and music optimized tone control
- PC and trigger inputs for automated calls, alarm tones and chimes to selected zones.
- Product EAN - 5021196576310
- Gross Weight (Packaged) (kg) - 6.69
- Item priced per - 1
- Colour - Black
- Product Dimensions (mm) - 103x433x300
- Weight (kg) - 5
- Power Input - 230 VAC @ 50 Hz
- Inputs - 3 BGM/2 Call Station
- Outputs - Master and Music on XLR , Tape on RCA Phono
- Frequency Response (Hz) - 50 - 20000
- Depth (mm) - 300
- Height (mm) - 103
- Width (mm) - 433
Additional Information
- SKU
- 03-BS002
- Barcode
- 5021196576310
- Manufacturer Code
- BS002 Comms
