Mercury Cat5e U/utp Outdoor-305m P/box Black

Mercury - Cat5e U/utp Outdoor-305m P/box Black

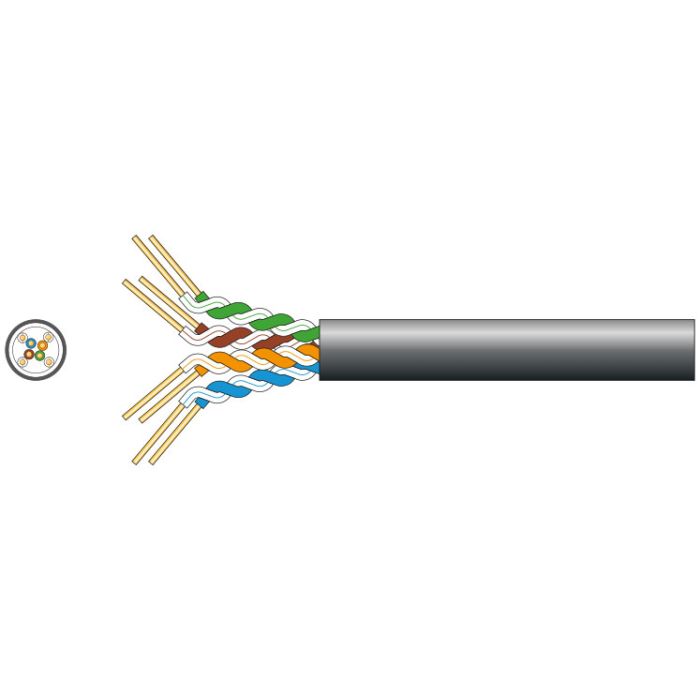

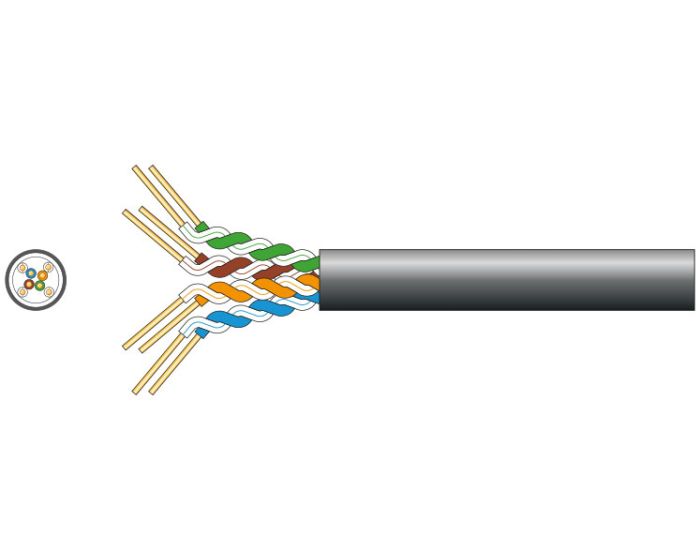

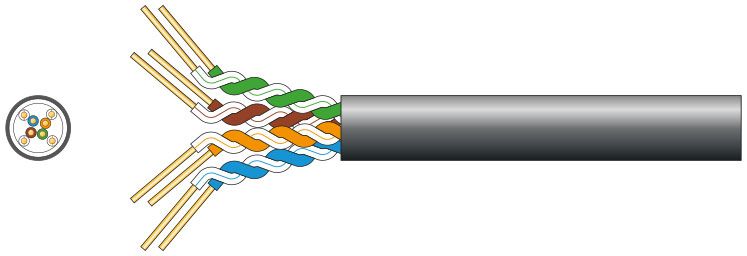

Cat5e oxygen free copper 4x twisted pair data cable with LDPE sheath. Supplied in dispensing box and marked at 1 metre intervals, this cable is designed for high speed data transmission such as Gigabit Ethernet applications.

Features

• LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
• AWG 24 oxygen free solid copper conductor
• Supplied in an easy-pull dispensing box and marked at 1m intervals
• Complies to TIA/EIA-568-C.2 Cat5e standard

Technical Specifications

• Conductor : Solid OFC
• Strands : 8 x 1/0.5mmDia +/-2%
• Conductor CSA : 8 x 0.196mm2 +/-2%
• Cable : diameter : 5.2+/-0.4mmDia
• Insulation : HDPE 0.87+/-0.03mmDia
• Sheath : LDPE 0.55+/-0.05mm thickness
• DC resistance @ 20DegC : 20.1dB @ 100MHz
• Attenuation : >22dB @ 100MHz
• NEXT : >35.3dB @ 100MHz
• Phase delay : >537.60ns @ 100MHz
• PSNEXT : >32.3dB @ 100MHz
• ELFEXT : >23.8dB @ 100MHz
• PSELFEXT : >20.8dB @ 100MHz
• Cable colour : Black
• Cable : length : 305+/-1.5m
• Weight : 8.1Kg
