Mercury Cat6 U/utp Outdoor Network Cable 100m Black

Mercury - Cat6 U/utp Outdoor Network Cable 100m Black

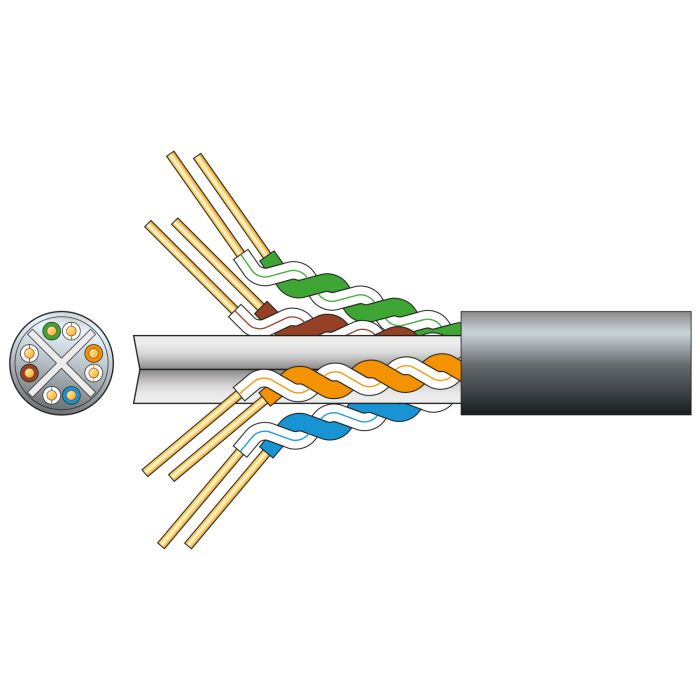

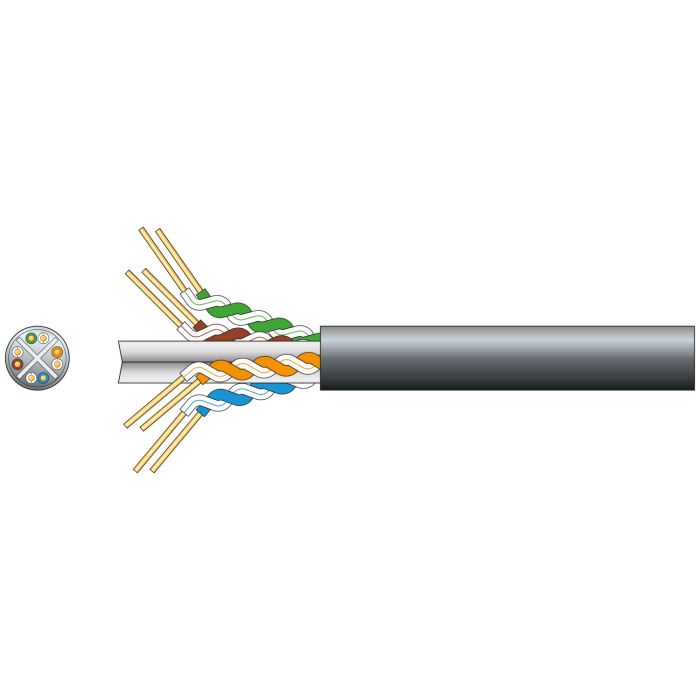

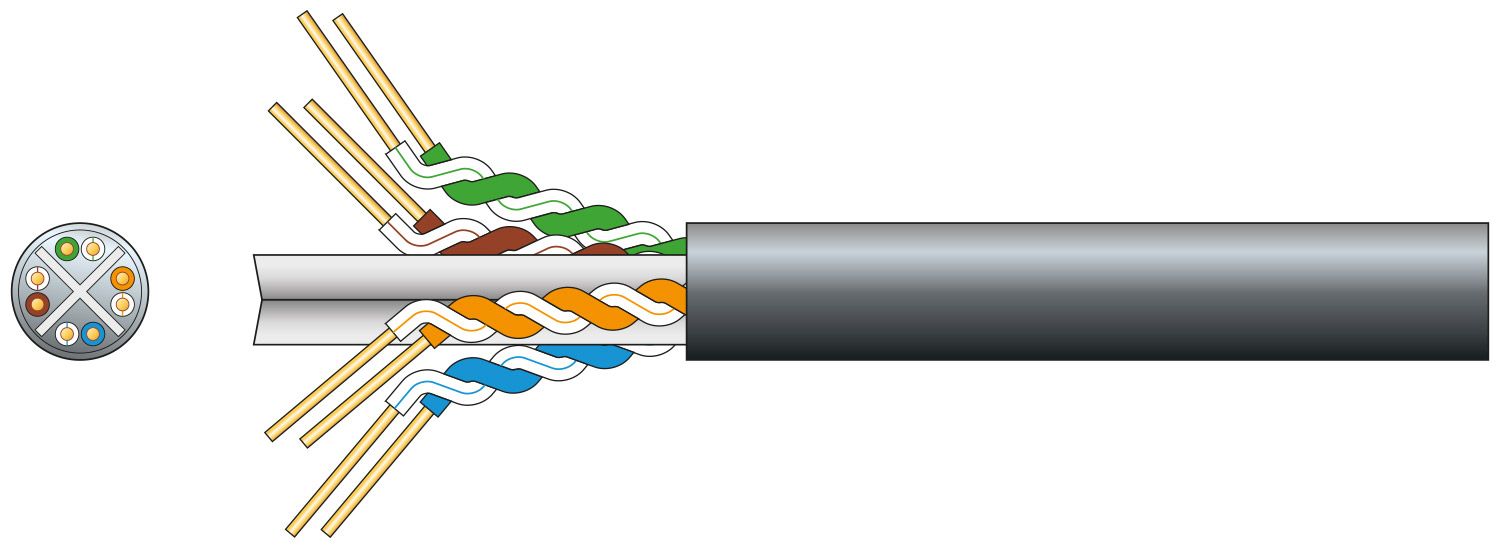

Cat6 oxygen free copper twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoors environment.

Features

• Oxygen free solid copper conductor
• LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
• Supplied in an easy-pull dispensing box and marked at 1m intervals
• Passes Cat6 fluke test 100m at 250MHz
• Complies to TIA/EIA-568 Cat6 standard

Technical Specifications

• Conductor : Solid OFC
• Strands : 8 x 0.53mmDia +/-2%
• Cable : diameter : 6.0+/-0.05mm
• Insulation : HDPE 0.93+/-0.05mm
• Sheath : LDPE 0.55+/-0.05mm thickness
• DC resistance @ 20DegC : 20.1dB @ 100MHz
• Attenuation : >19.8dB @ 100MHz
• NEXT : >44.3dB @ 100MHz
• Phase delay : >537.60ns @ 100MHz
• PSNEXT : >42.3dB @ 100MHz
• ELFEXT : >27.8dB @ 100MHz
• PSELFEXT : >24.8dB @ 100MHz
• Cable colour : Black
• Cable : length : 100+/-0.5m
• Weight : 4.3kg
