Mercury Cat6a S/ftp Lszh Network Cable 305m Lilac
£190.80
In stock
Only 100 left
SKU: 808.033UK
Cat6a S/FTP LSZH Network Cable 305m Lilac 808.033UK by mercury
Product Description
Mercury - Cat6a S/ftp Lszh Network Cable 305m Lilac

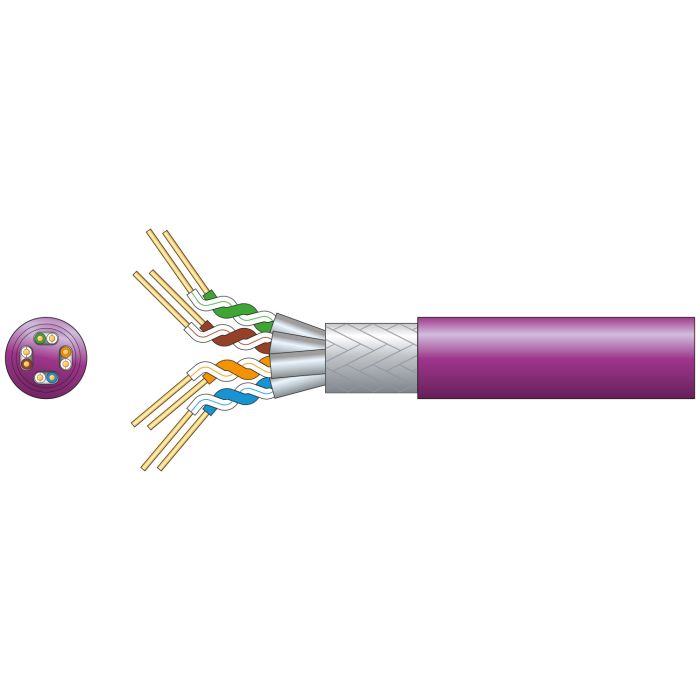

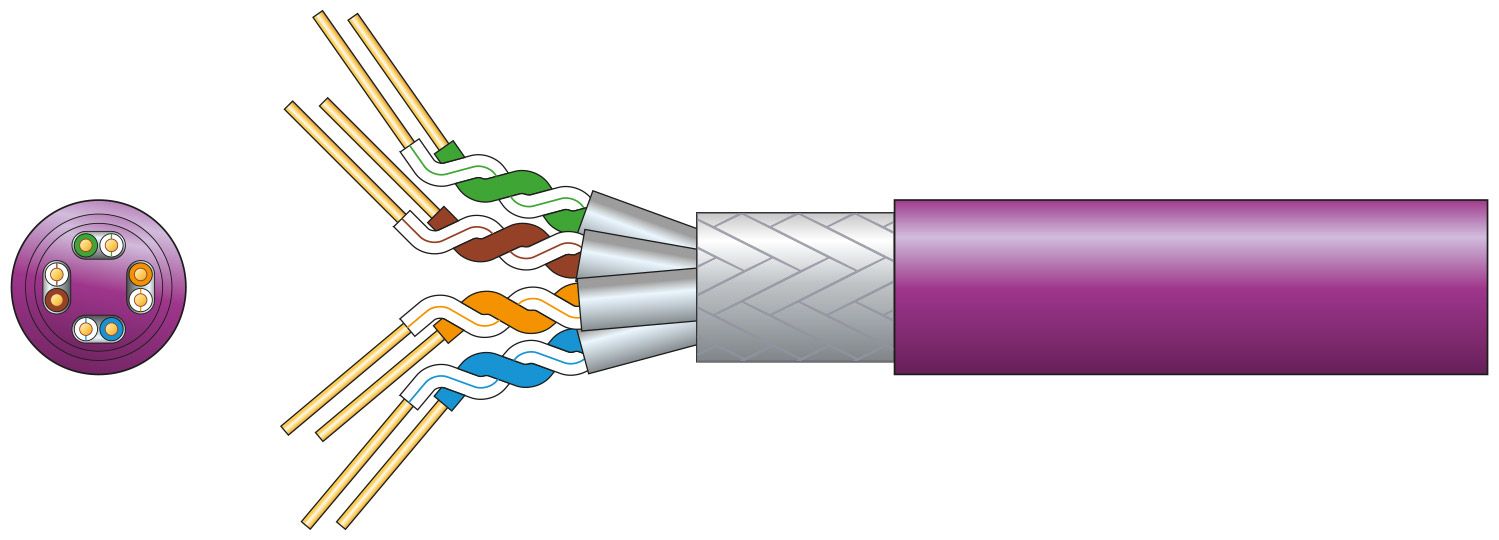

Cat6a oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Individual pair aluminium foil screen and overall braided aluminium screen provide protection from any pair or alien crosstalk. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications within noisy environments.
Features
- Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
- AWG 23 oxygen free solid copper conductor
- Supplied on a sturdy wooden drum reel
- Passes Cat6a fluke test 100m at 500MHz
- Complies to TIA/EIA-568 Cat6a standard
Technical Specifications
- Conductor : Solid OFC
- Strands : 8 x 1/0.565mmDia +/-2%
- Conductor CSA : 8 x 0.251mm2
- Cable : diameter : 7.5mmDia
- Screen : Aluminium/Mylar foil
- Braid material : Aluminium
- Insulation : PE 0.385mm thickness
- Sheath : LSZH 0.55mm thickness
- Capacitance : 6.6nF/100m
- DC resistance @ 20DegC : 25dB @100m
- Attenuation : 74.3dB
- PSNEXT : >72.3dB
- ELFEXT : >13.8dB
- PSELFEXT : >10.8dB
- Phase delay :
Additional Information
- SKU
- 808.033UK
- Brand
- Mercury
- Barcode
- 5015972177051
- Manufacturer Code
- 808.033UK
