Mercury Cat6a U/ftp Lszh Network Cable 305m Lilac

Mercury - Cat6a U/ftp Lszh Network Cable 305m Lilac

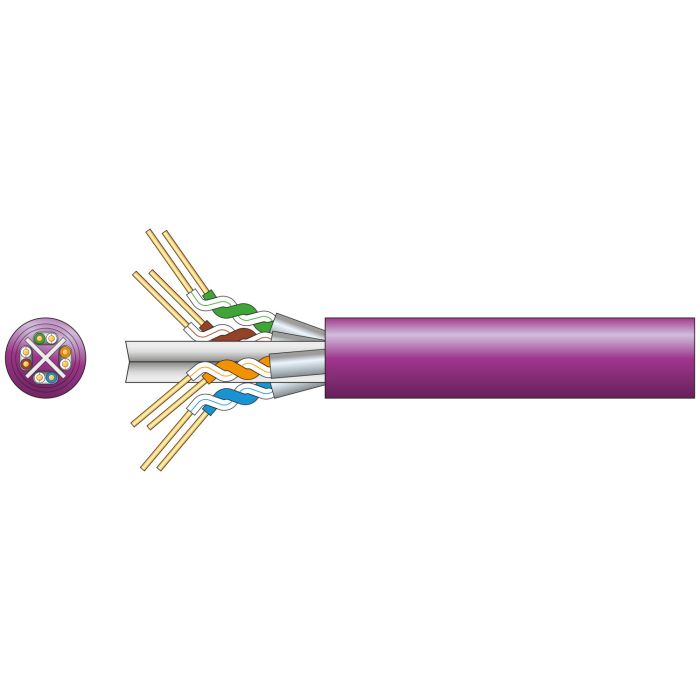

Cat6a oxygen free copper twisted pair data cable with low smoke zero halogen sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

Features

• AWG 23 oxygen free solid copper conductor
• Supplied on a sturdy wooden drum reel
• Passes Cat6a fluke test 100m at 500MHz
• Complies to TIA/EIA-568 Cat6a standard
• Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
• HDBaseT Compliant

Technical Specifications

• Conductor : Solid OFC
• Strands : 8 x 1/0.565mmDia +/-2%
• Conductor CSA : 8 x 0.251mm2
• Cable : diameter : 7.5mmDia
• Insulation : PE 0.385mm thickness
• Sheath : LSZH 0.55mm thickness
• Capacitance : 6.6nF/100m
• DC resistance @ 20DegC : 25dB @100m
• Attenuation : 74.3dB
• PSNEXT : >72.3dB
• ELFEXT : >14dB
• PSELFEXT : >11dB
• Phase delay :
