Mercury Economy Cat6 Outdoor U/utp Network Cable 305m

Mercury - Economy Cat6 Outdoor U/utp Network Cable 305m

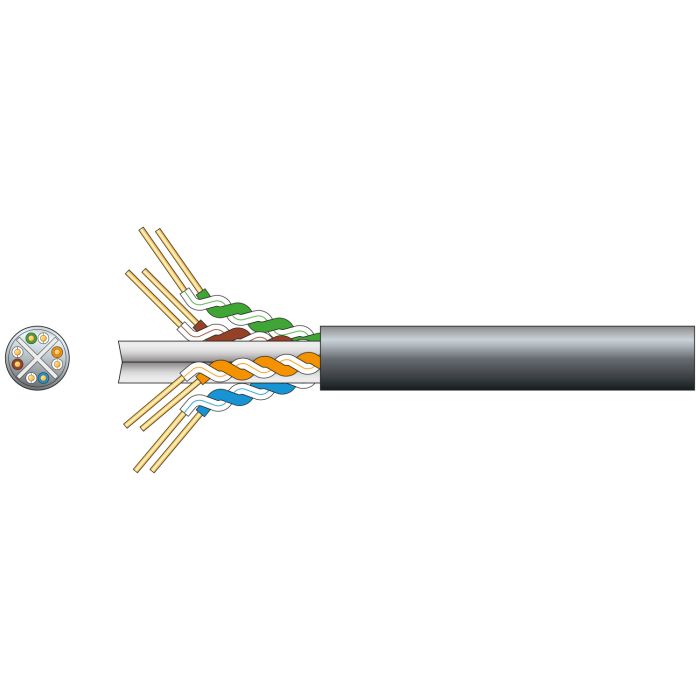

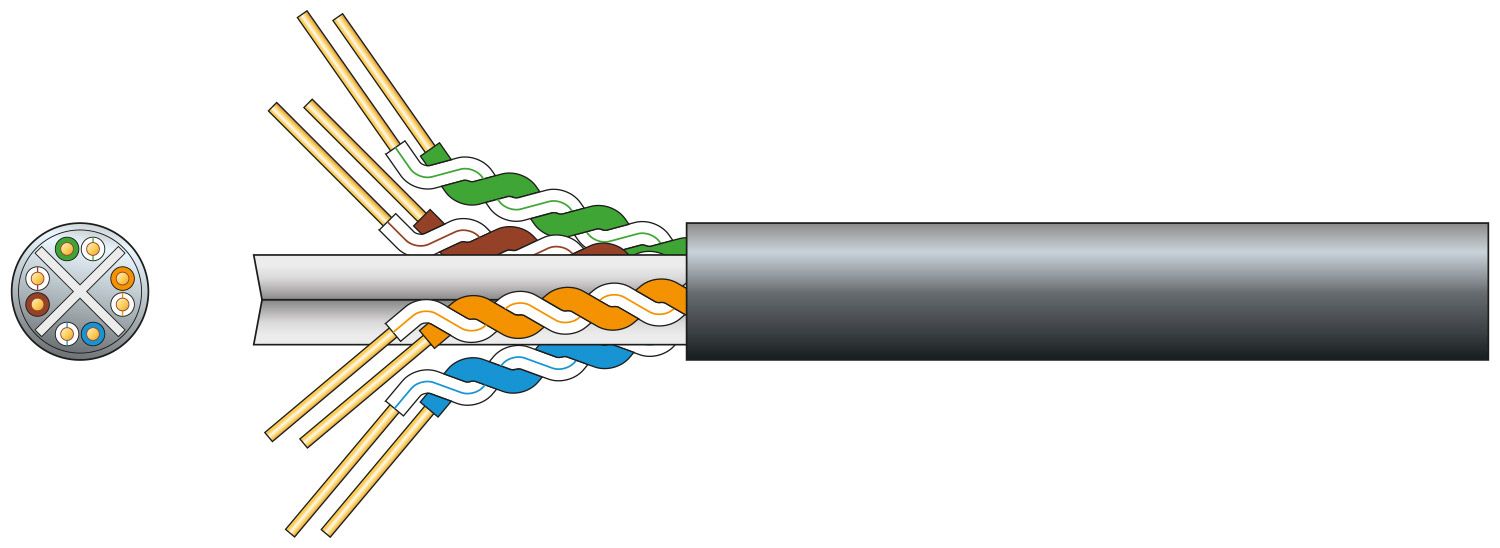

Cat6 solid conductor twisted pair data cable with PE sheath supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoor environment.

Features

• Solid copper clad aluminium conductor
• PE sheath with UV resistant properties ideal for outdoor installations
• Supplied in an easy-pull dispensing box
• Passes Cat6 fluke test 100m at 250MHz
• Complies to TIA/EIA-568 Cat6 standard

Technical Specifications

• Conductor : Solid CCA
• Strands : 8 x 1/0.57mmDia +/-2%
• CSA : 8 x 0.26mm2
• Cable : diameter : 6mmDia
• Insulation : HDPE 0.23mm thickness
• Sheath : PE 0.5mm thickness
• Impedance : 100 Ohms (+/-15)
• DC resistance @ 20DegC : 20dB @ 100m (from 1Mhz to 100Mhz)
• NEXT : >40dB @ 100m
• PSNEXT : >38dB @ 100m
• Cable colour : Black
• Length : 305m
• Weight : 7kg
