Economy U/UTP Network Cable, Grey, 305m, 808.021 Mercury

Mercury - Economy Cat5e U/utp Network Cable 305m Grey

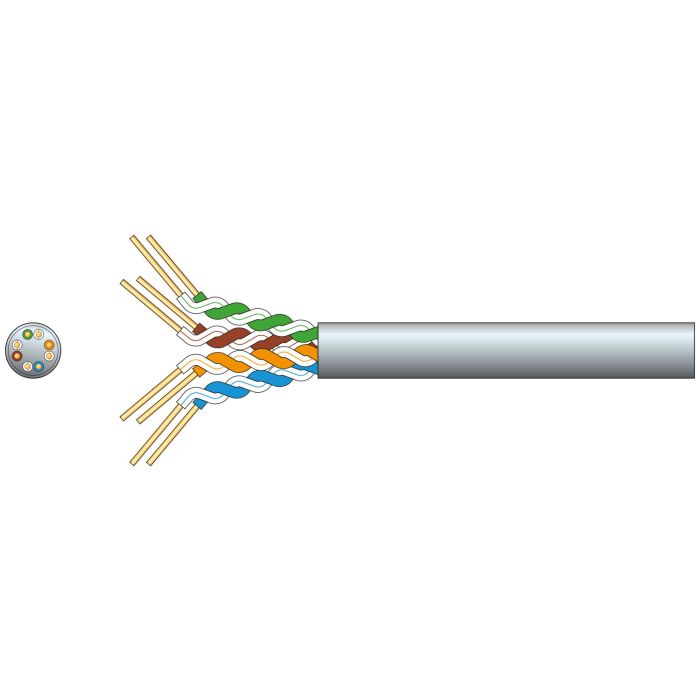

Solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. Can be used for high speed data transmission such as Gigabit Ethernet applications.

Features

• Passes Cat5e fluke test 100m at 100MHz
• Solid copper clad aluminium conductor
• Supplied in an easy-pull dispensing box

Technical Specifications

• Conductor : Solid CCA
• Strands : 8 x 1/0.51mmDia +/-2%
• CSA : 8 x 0.204mm2
• Cable : diameter : 5mmDia
• Insulation : HDPE 0.19mm thickness
• Sheath : PVC 0.5mm thickness
• Impedance : 100 Ohms (+/-15)
• DC resistance @ 20DegC : 20dB @ 100m
• NEXT : >40dB @ 100m
• PSNEXT : >38dB @ 100m
• Cable colour : Grey
• Length : 305m
• Weight : 6kg
