KLARKTEKNIK DM8008

KLARKTEKNIK DM8008

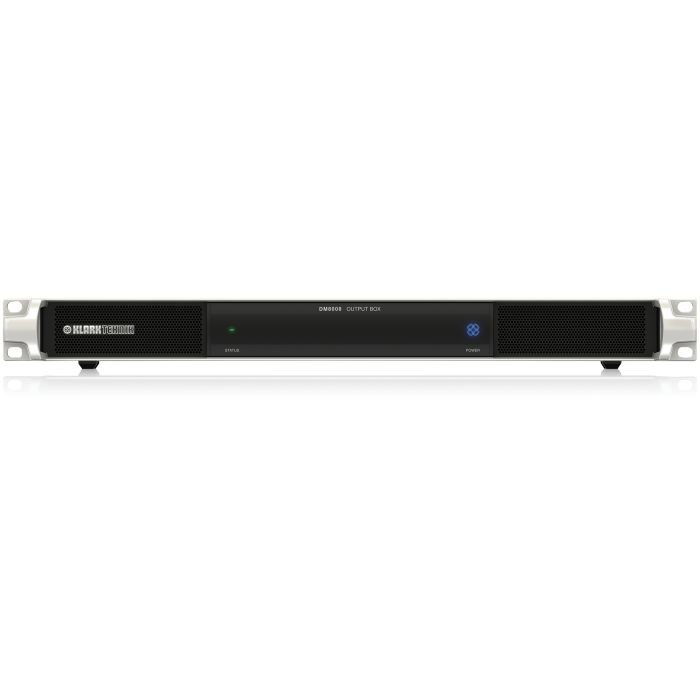

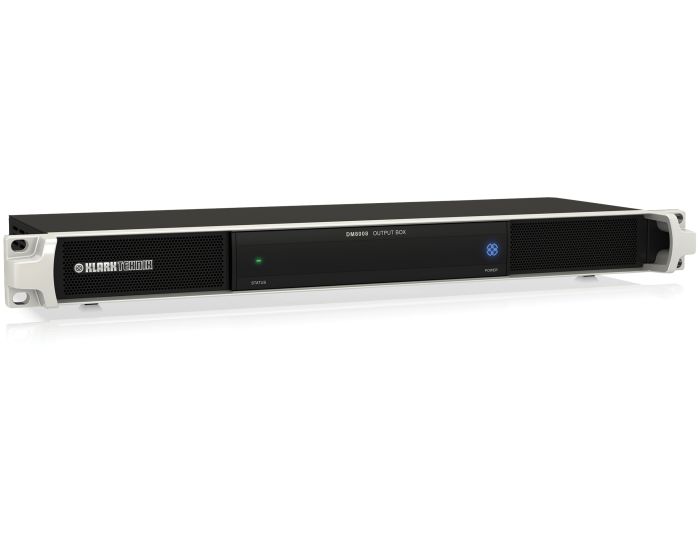

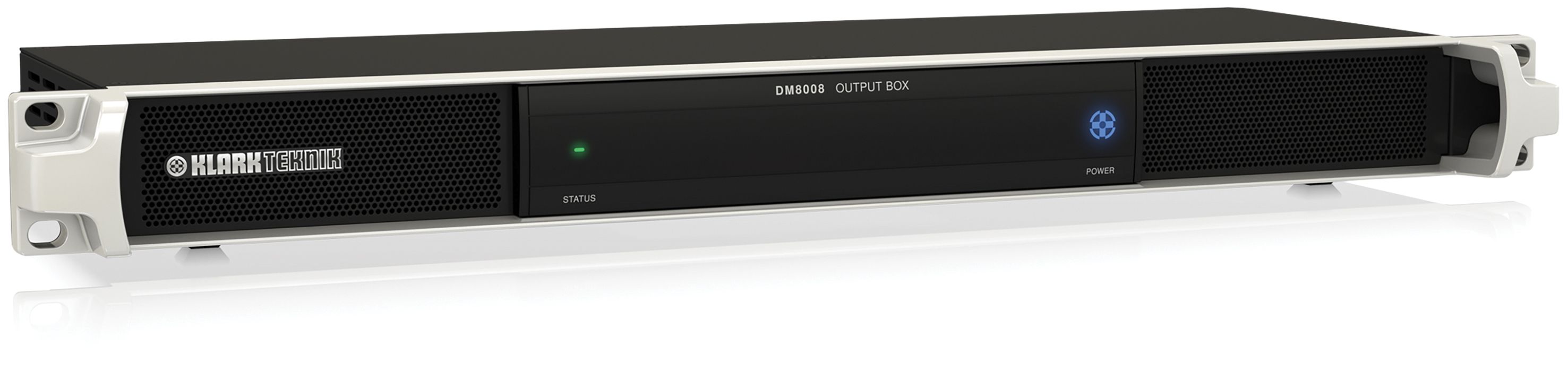

Digital music and sound distribution requires specialised tools to ensure the desired content arrives at the proper zone(s) in all its pristine sound quality. The DM8008 Channel Output Box, a rugged 19"" 1U rack-mount chassis designed specifically for the ULTRANET environment, provides 8 channels of analogue output making it ideal for use in hotels, houses of worship, casinos and a myriad of other professional audio applications. Up to 7 DM8008's may be connected in series on a single ULTRANET cable for the ultimate in signal routing versatility.

DM8008 utilises our proprietary ULTRANET networking, which allows users to transmit up to 16 independent channels of 24-bit audio via ULTRANET-enabled devices over CAT5 cabling with RJ45 connections. The digital signal is converted internally to analogue by the DM8008's high quality 24-bit D/A converters, which offer a 48 kHz sample rate. Outputs are provided in the form of standard balanced analogue Euroblock connectors. A convenient switch on the rear panel allows users to select between channels 1 - 8, or channels 9 - 16.

Designed for shelf mounting or installation in conventional 19"" rack systems, DM8008's chassis houses an auto-ranging universal switch-mode power supply (100 - 240V).

• 8 channels of analogue outputs over ULTRANET
• Standard Euroblock connectors for analogue audio connections
• High quality 24-bit D/A converters with 48 kHz sample rate
• Rugged 1U rackmount chassis for ease of installation
• Auto-ranging universal switch-mod

• Model DM8008
• Item priced per 1
• Frequency Response (Hz) 20 Hz to 20 kHz (?0.4 dB, input to output @ +4 dBu)
• Power consumption (W) 12
• Product EAN 4033653071314
• Number of Channels 8
• Voltage 100-240 V ~
• Product Dimensions (mm) 49x483x165

• 8 channels of analogue outputs over ULTRANET
• Standard Euroblock connectors for analogue audio connections
• High quality 24-bit D/A converters with 48 kHz sample rate
• Rugged 1U rackmount chassis for ease of installation
• Auto-ranging universal switch-mod
