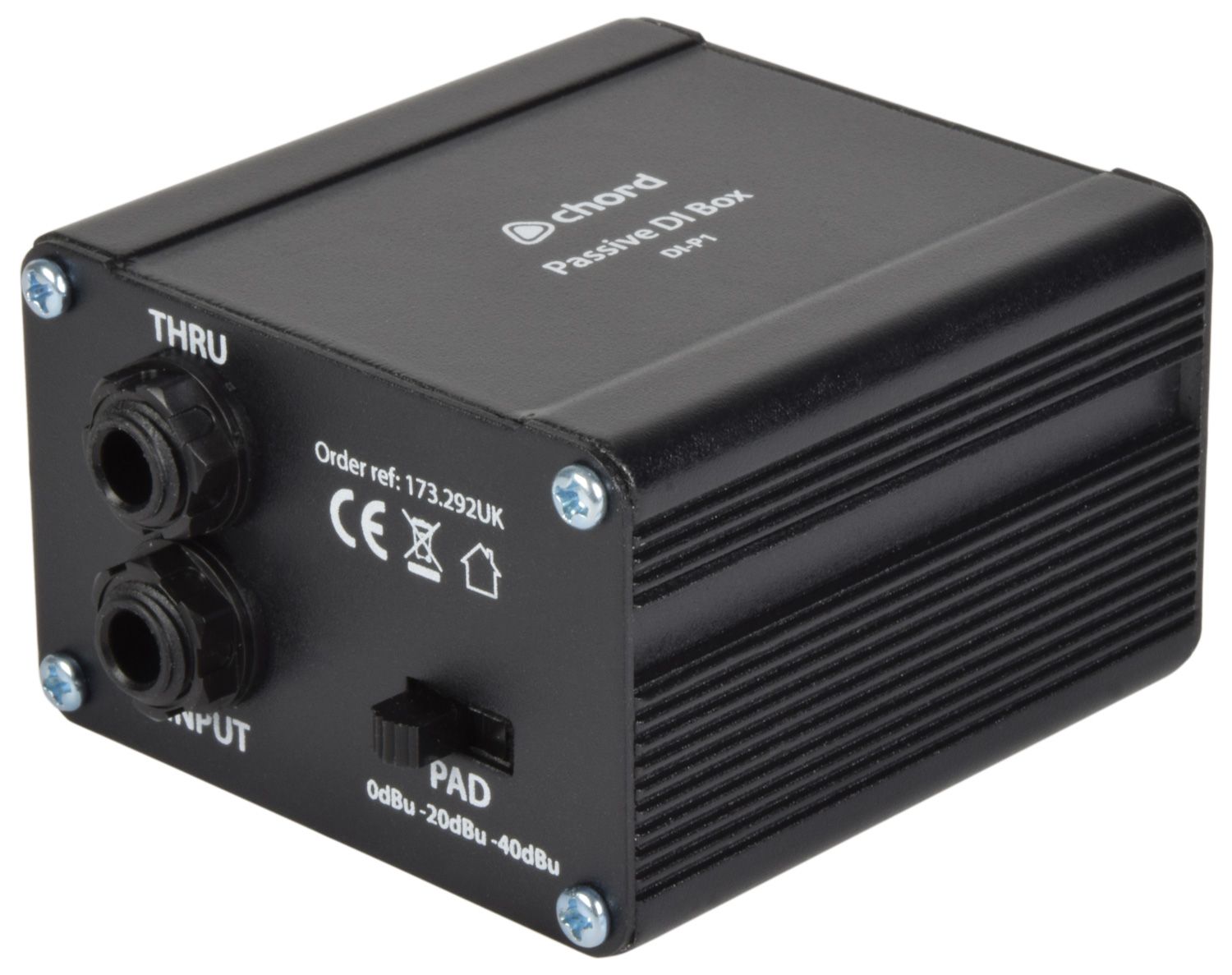

Chord Di-p1 Passive Direct Injection Box

Chord Di-p1 - Passive Direct Injection Box

Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Equipped with 3 pad settings, RF/mains filter and selector for ground lift with or without filter.

Features

• Ground float option for ground lift with RF/mains filter
• Ground lift option isolates signal ground without filter
• 3 pad settings for level matching

Technical Specifications

• Input : 6.3mm jack (unbalanced)
• Outputs : XLRM (balanced), 6.3mm jack through (unbalanced)
• Output impedance : 600 Ohms
• Input impedance : >100k Ohms
• Controls : 0/-20/-40dBu pad & Ground-Float-Lift switch
• Dimensions : 86 x 70 x 45mm
• Weight : 234g
