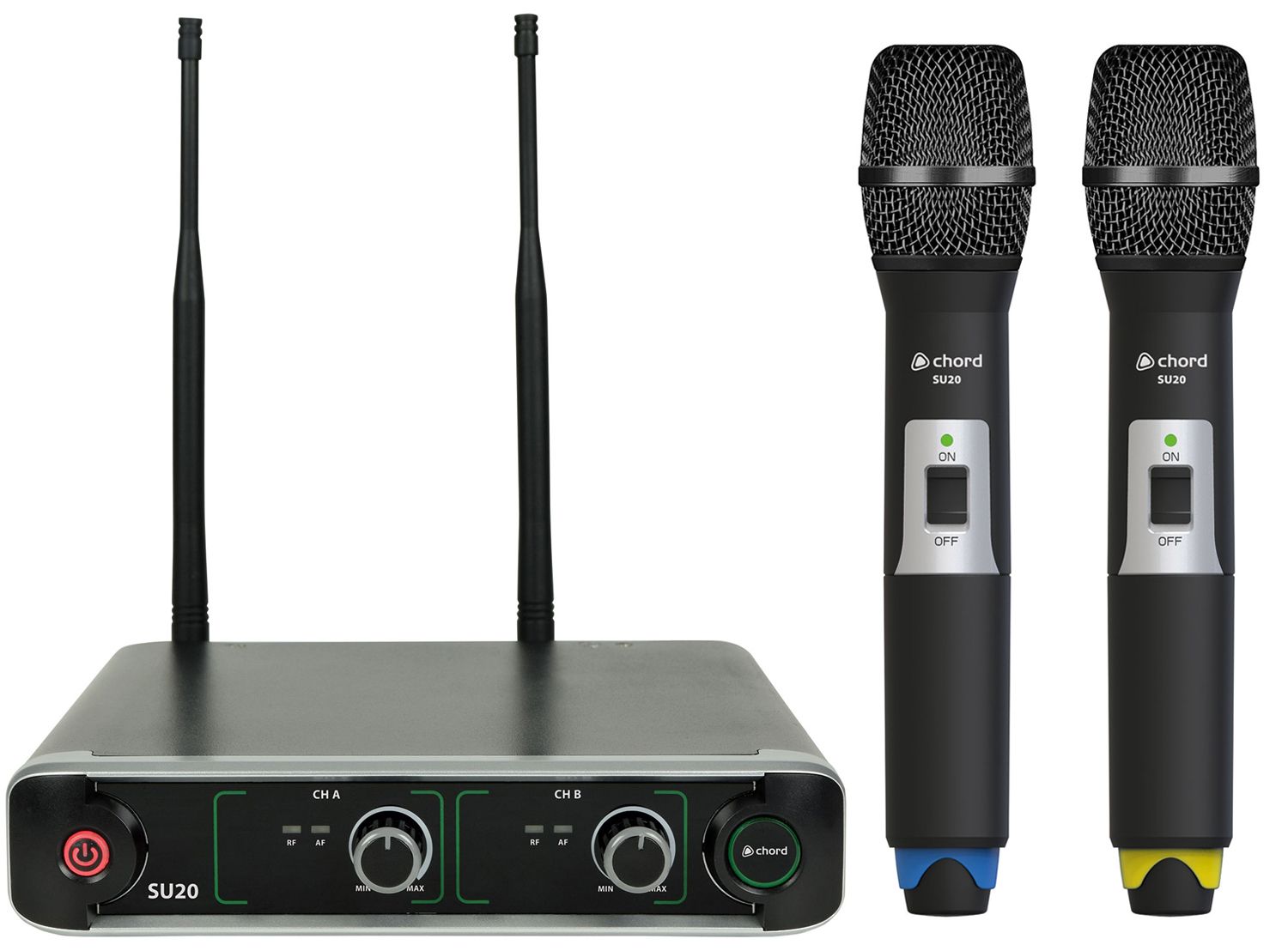

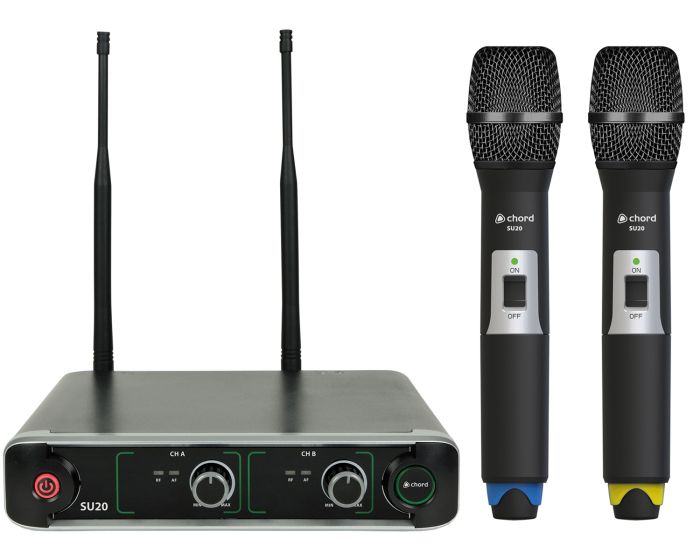

Chord Su20-h-by Su20 Dual Uhf Handheld Microphone Set Blue + Yellow

Chord Su20-h-by - Su20 Dual Uhf Handheld Microphone Set Blue + Yellow

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or front mounting as required. Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.

Features

• Up to 2 sets (4 microphones) can be used together
• Available in handheld or beltpack versions with 2 carrier frequency options
• Compact half-rack receiver
• Front or rear mountable antennas
• Supplied with power adaptor and 4 x AA batteries

Technical Specifications

• Power supply : 14Vdc 350mA (adaptor supplied)
• Antenna connection : BNC
• Batteries : 4 x AA (2 per transmitter) included
• Range : 60m
• Microphone : polar pattern : Cardioid (handheld, neckband or lavalier)
• Output connections : 2 x balanced XLR, 1 x unbalanced 6.3mm jack
• Output impedance : 2.2k Ohms
• Output level : 400mV (balanced), 200mV (unbalanced)
• Frequency response : 50Hz - 18kHz (+/-3dB)
• S/N ratio : >80dB
• THD : <0.5% @ 1kHz
• Dimensions : receiver : 203 x 187 x 42mm
• Weight : receiver : 845g
• Dimensions : handheld transmitter : 250 x 47mmDia
• Weight : handheld transmitter : 231g (no battery)
• Dimensions : beltpack transmitter : N/A
• Weight : beltpack transmitter : N/A
• Carrier frequencies : 864.8MHz (Blue) + 863.1MHz (Yellow)
