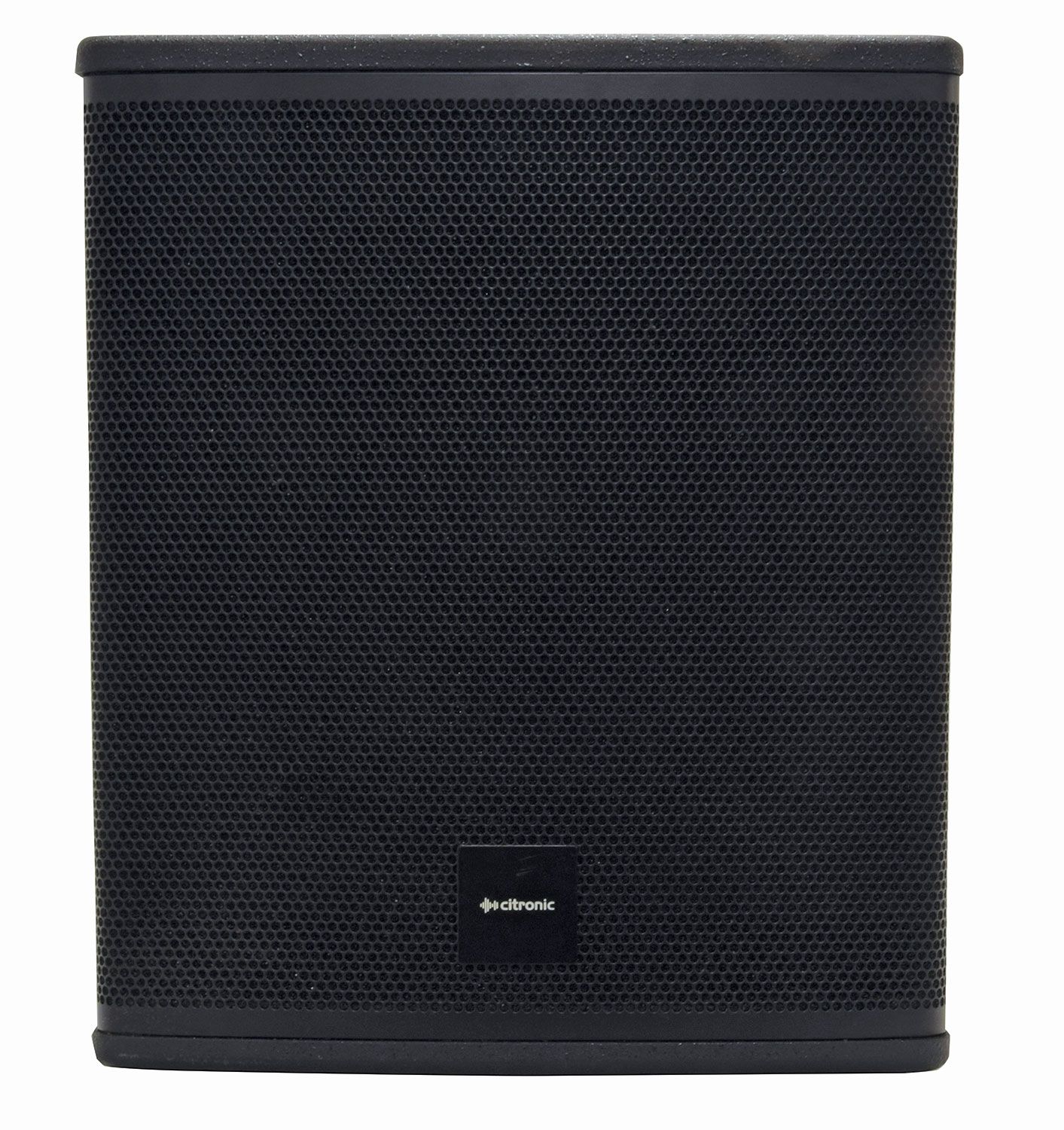

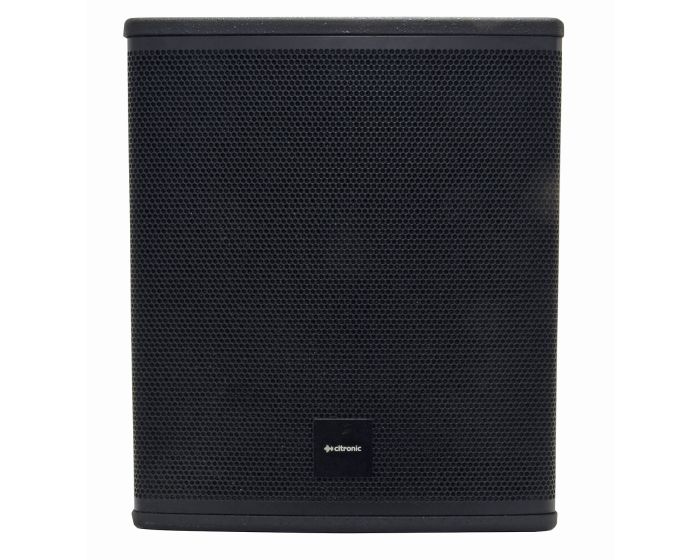

Citronic Casa-12ba Active Sub Woofer Bass Dj Speaker 400wrms

Citronic Casa-12ba - Casa-12ba Active Sub 400wrms

Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.

Features

• Compact and lightweight design
• 15mm MDF cabinets with hard-wearing paint finish
• 2 x side carry handles
• 35mm pole mount socket

Technical Specifications

• Power supply : 230Vac, 50Hz (IEC)
• Construction : 15mm MDF with durable texture paint finish
• Hardware : 2 x side carry handles + 35mm pole mount socket
• Line inputs : L+R balanced XLR
• Line outputs : L+R balanced XLR & L+R link XLR
• Controls : Output level, phase switch, high pass x-over (output)
• Amplifier : construction : Class D
• Sub driver : 300mmDia (12")
• Output power : rms : 400W
• Output power : max. : 700W
• Weight : 18.86kg
• Dimensions : 480 x 450 x 380mm
• Voice coil : 62mmDia (2.5")
• Peak output : 1400W
• SPL max. : 122.0dB
• Frequency response : 55 - 150Hz
