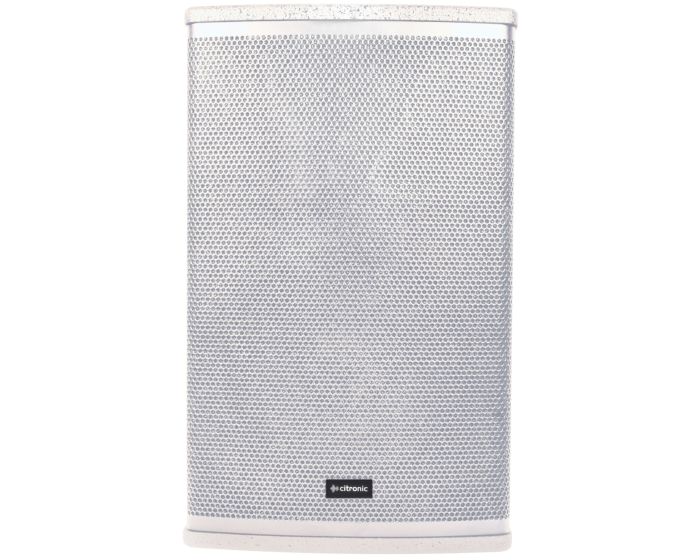

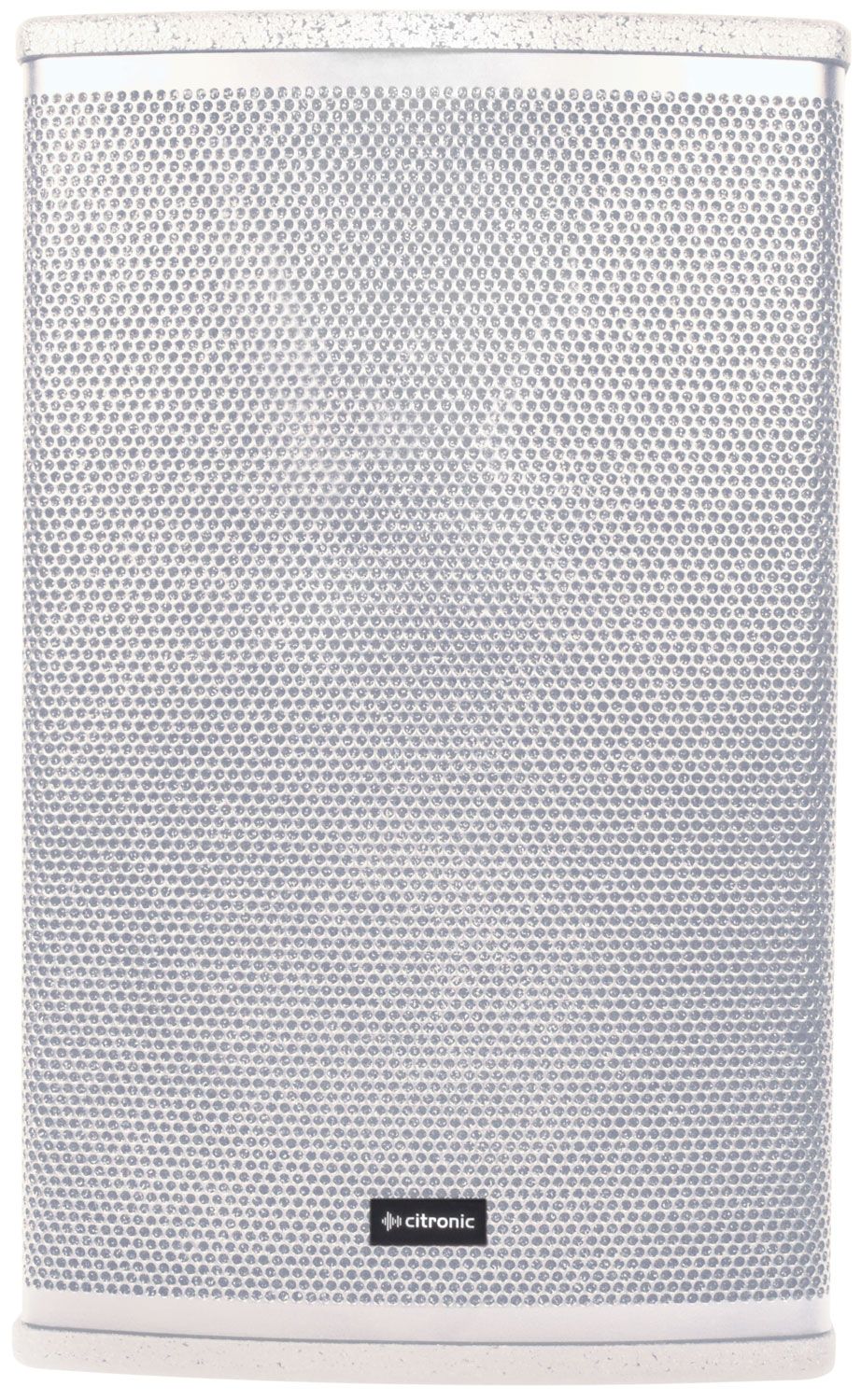

Citronic Cuba-10w Passive Full-range Cab - White

Citronic Cuba-10w - Cuba-10w Passive Full-range Cab - White

Premium full-range passive speaker cabinets with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient titanium diaphragm HF compression driver combine with the tuned enclosure to deliver a balanced output of all frequencies. The rear panel has 2 parallel inputs for Speakon connection, also enabling linking onto additional speakers. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Recommended for use with Citronic PLX, D and H-series amplifiers for a wide range of professional high power sound reinforcement situations.

Features

• Hard-wearing polyurea cabinet coating
• Custom designed high power LF and HF drivers
• 35mm pole mount socket and M8 flying points
• CUBA-8 & CUBA-10 supplied with a U-bracket

Technical Specifications

• Construction : Polyurea coated MDF + powder-coated steel grille
• Input : 2 x parallel SPK socket
• Impedance : 8 Ohms
• Main driver : 250mmDia (10")
• Voice coil : 50mmDia (2")
• HF driver : 35mmDia (1.35") Ti compression driver
• Power handling : rms : 270W
• Power handling : max : 540W
• Frequency response : 60Hz-20kHz
• Sensitivity : 95dB
• Max. SPL : 122.5dB
• Dimensions : 507 x 313 x 307mm
• Weight : 12.5kg
• Colour : White
