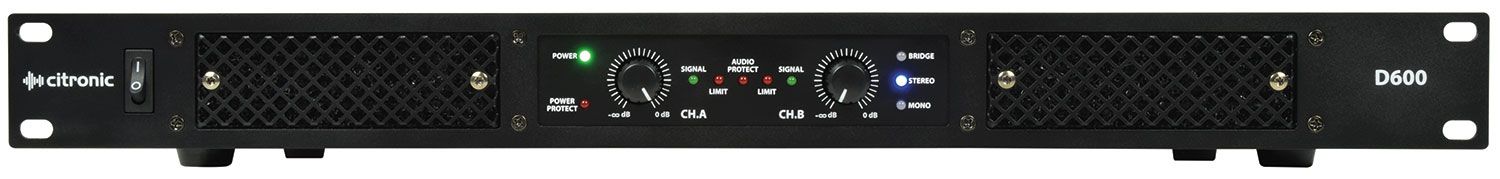

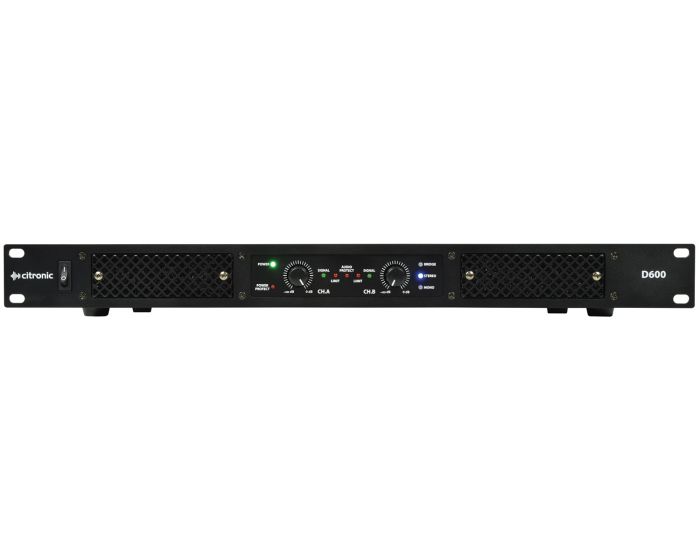

Citronic D600 PA Amplifier 600W 1u DJ Studio

Citronic D600 - D600 Class-d Amplifier 2 X 300wrms

Stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets. Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload. Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different confgurations to handle even the most demanding of sound reinforcement duties.

Features

• Compact and lightweight 1U rack format
• Cool and efficient operation even at high output
• Switchable parallel and bridge modes

Technical Specifications

• Power supply : 220-240Vac, 50/60Hz (IEC)
• Modes : Stereo, Parallel (mono), Bridge (mono)
• Input sensitivity : 0.775V - 1.0V - 1.44V switchable
• Low-cut filter : 75Hz switchable
• Input connections : L+R XLR female (L+R XLR male through)
• Output connections : L+R SPK connectors (+1 for bridge mode)
• Dimensions : 482 x 245 x 44mm
• Power rms @ 4 Ohms : 2 x 300W
• Power rms @ 8 Ohms : 2 x 150W
• Bridge power @ 8 Ohms : 1 x 600W
• Weight : 3.77kg
• Fuse : T8A (20 x 5mm)
