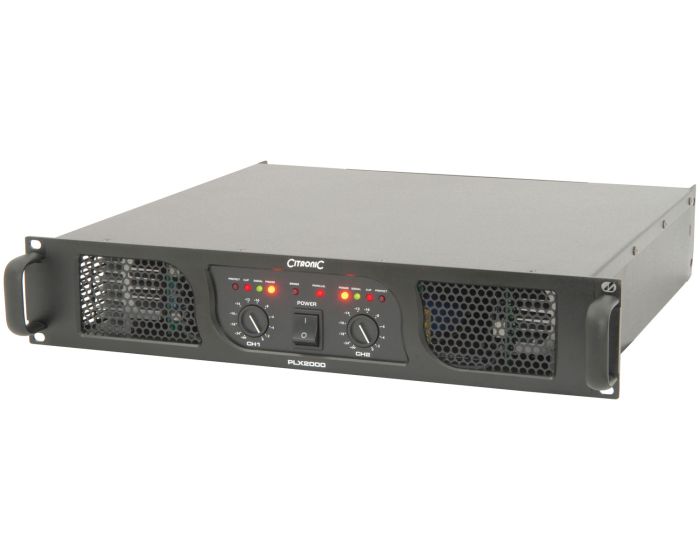

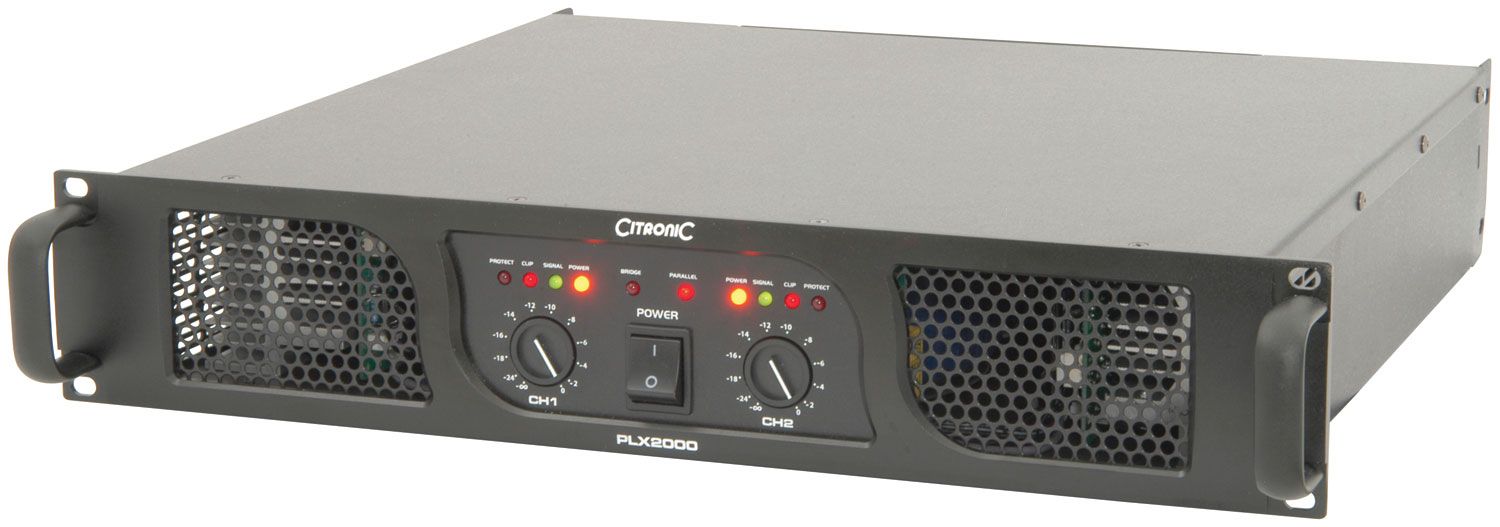

Citronic Plx2000 Power Amplifier 2 X 700w @ 4 Ohms

Citronic Plx2000 - Plx2000 Power Amplifier, 2 X 700w @ 4 Ohms

19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.

Features

• Bridge mode for high power mono operation
• Output stable down to 2 Ohms
• Removable handles for low profile install
• Switchable clip limiter

Technical Specifications

• Power supply : 230Vac, 50Hz (IEC)
• Controls : Level channel 1, level channel 2, ground, mode, clip limiter
• Input impedance : 20k ohms
• Frequency response : 5Hz - 50kHz
• Total harmonic distortion : 0.05%
• Slew rate : 40V/us
• Damping factor : >400
• Protection : Short-circuit, overload, D.C. and thermal protect
• Dimensions : 482 x 453 x 88mm (2U)
• Power rms @ 2 Ohms : 2 x 1000W
• Power rms @ 4 Ohms : 2 x 700W
• Power rms @ 8 Ohms : 2 x 400W
• Power rms bridge @ 4 Ohms : 1700W
• Power rms bridge @ 8 Ohms : 1250W
• Weight : 22.5kg
• Fuse : F8A (6 x 32mm)
• Amplifier : construction : Class-AB
