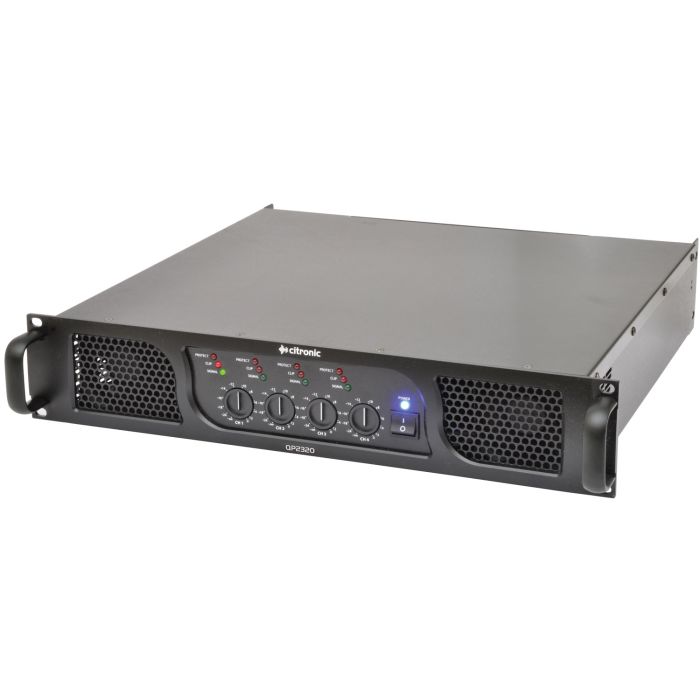

Citronic Qp2320 Quad Power Amplifier 4 X 580w

Citronic Qp2320 - Qp2320 Quad Power Amp 4 X 580w

These quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.

Features

• Fully balanced signal path
• Stable down to 2 Ohms
• 2U rack-mountable

Technical Specifications

• Power supply : 230Vac, 50Hz (IEC)
• Controls : 4 x channel gain
• Dimensions : 483 x 439 x 88mm
• Input : line : 4 x XLRF balanced
• Output : line : 4 x XLRM (parallel from inputs)
• Speaker : outputs : 4 x SPK connectors
• Input impedance : 20k Ohms
• Frequency response : 5Hz - 50kHz
• THD : 0.05%
• Slew rate : 40V/usec
• S/N ratio : 103dB
• Circuit protection : Short-circuit, DC, overload, soft-start
• Power rms @ 8 Ohms : 4 x 300W
• Power rms @ 4 Ohms : 4 x 450W
• Power rms @ 2 Ohms : 4 x 580W
• Weight : 23.5kg
• Fuse rating : F12A
