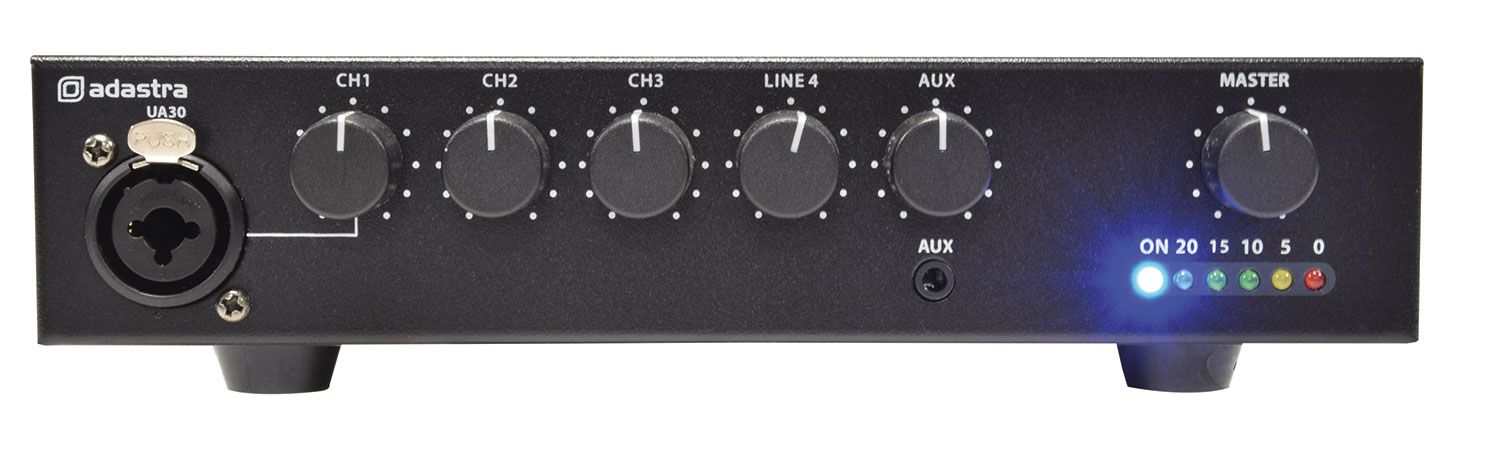

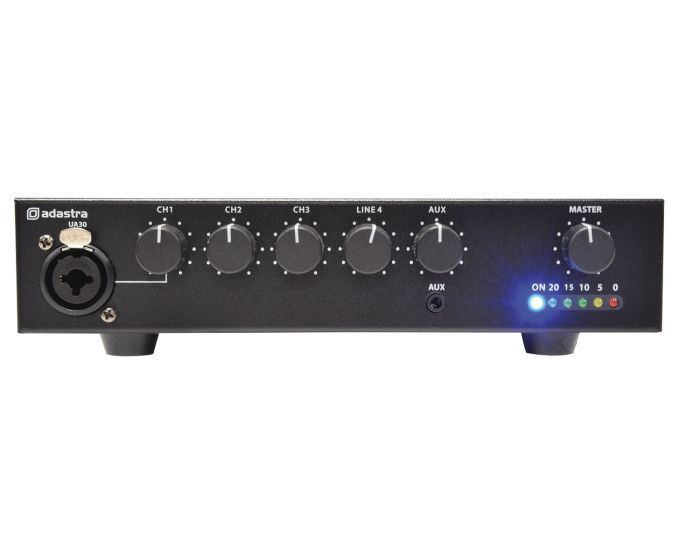

Adastra Ua30 Compact 5ch 100v Mixer Amplifier
£108.00
Out of stock
SKU
953.183UK
UA30 Compact 5ch 100V MixerAmp 953.183UK by adastra
Adastra Ua30 - Ua30 Compact 5ch 100v Mixeramp
100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.
Features
- 24V fire alarm mute contacts
- Supplied with hardware for rack-mounting 2 units
- 5 input channels
- 100V line or 8 Ohms operation
- Switchable +20V phantom power CH1
Technical Specifications
- Power supply : 170-264Vac, 50Hz (IEC)
- Amplifier : construction : Class D + transformer output
- Inputs : Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
- Line output : 2 x RCA (mono)
- Speaker output : Euroblock terminals: 100V / 8 Ohms / Com
- Mute : 24V relay contacts
- THD : <0.4% @ 1kHz
- Input impedance : 1k Ohms (mic/line)
- Input sensitivity : -10dB (line), -45dB (mic)
- SNR : 80dB (line), 75dB (mic)
- Frequency response : 100Hz - 18kHz
- Phantom power : +20V CH1 (XLR or rear terminals)
- Output power : rms : 30W
- Dimensions : 249 x 210 x 44mm
- Weight : 2.35kg
Brand | Adastra |
---|---|
Barcode | 5015972216552 |
Manfacturer Code | UA30 |
