Qtx Dmx-d4 - 4 Way Dmx Booster/distributor

Qtx Dmx-d4 - Dmx-d4 - 4 Way Dmx Booster/distributor

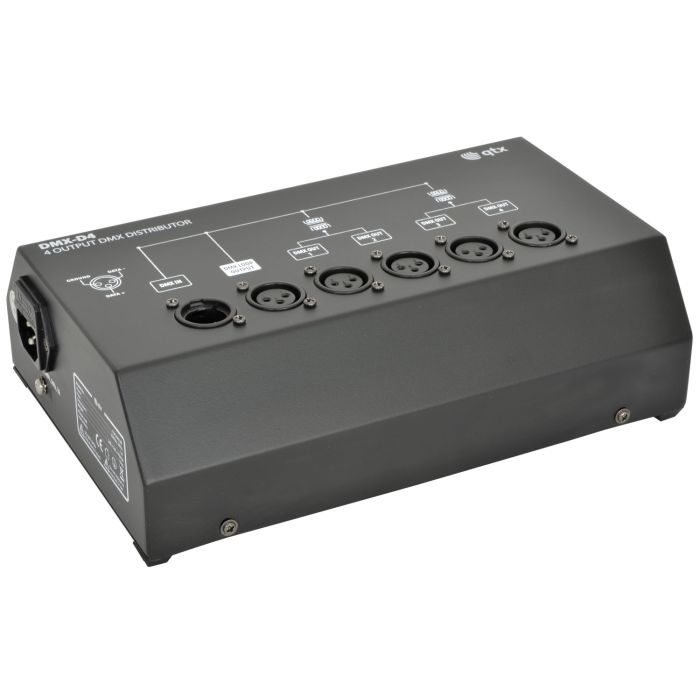

This 4 way DMX Booster/distributor has one input, loop through and two electrically opto isolated outputs. Both DMX input and DMX output are provided with 3 pin XLR connectors making it universally compatible with most lighting systems. This item is ideally used for splitting the signal over a large area rather than running a chain. The box will isolate individual sub chains, making it quick and easy to protect and fix faults when they occur without the whole system failing.

Features

• DMX Loop out or DMX terminated (supplied)
• Powered by mains to boost signal over a long distance
• 2 x Opto isolated DMX outputs (isolated in pairs, CH1&2, CH3&4)

Technical Specifications

• Power supply : 230Vac, 50Hz (IEC)
• DMX inputs : 1
• DMX outputs : 4
• Dimensions : 248 x 165 x 70mm
• Weight : 1.5kg
