Lyyt 12-24v Rgb Dmx Controller

Lyyt - 12-24v Rgb Dmx Controller

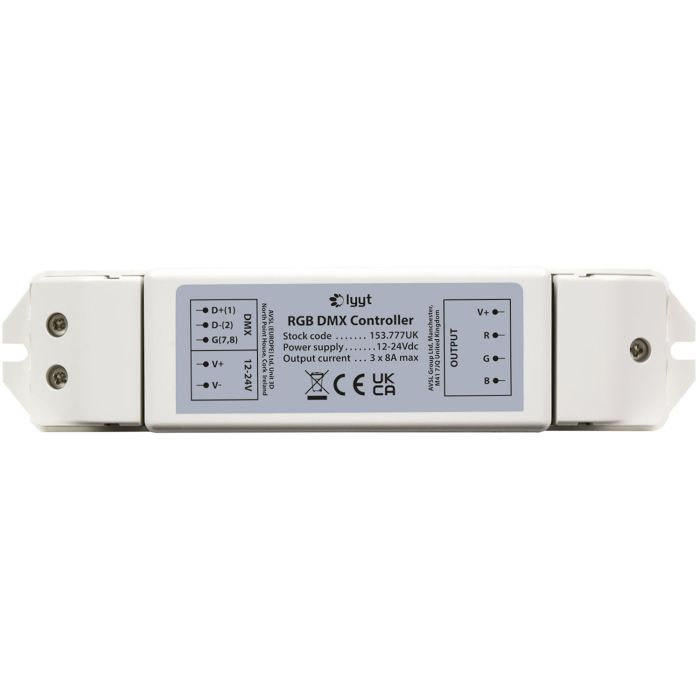

This DMX decoder is designed to convert the universal standard DMX512/1990 into analogue signal to control either 12V or 24V RGB LED tape. This model can drive 8A/channel and it simply assigns a colour per DMX channel. DC power input and colour channel outputs are connected via screw terminals. DMX input and through connection are also via screw terminals with the start address set by side mounted DIP switches. Powered by a 12V or 24V power supply, this decoder enables 3 channel DMX control of Red, Green and Blue output

Features

• 3 channel DMX control for RGB colour mixing
• 256 levels of brightness
• Up to 8A output per channel
• 12V or 24V operation
• Screw terminal DMX input

Technical Specifications

• Power supply : 12-24Vdc
• Power : max. : ?288W/12V?576W/24V
• Current consumption : 24A max.
• DMX channels : 3
• Output current : 3 x 8A max.
• Power connection : Screw terminals
• Output : Blue, Red, Green, V+
• Working temperature : -20?50?
• IP rating : IP20
• Dimensions : 170 x 30 x 40mm
• Weight : 92g
