Lyyt 12-24v Rgb Dmx Controller
£29.33
In stock
Only 42 left
SKU
153.777UK

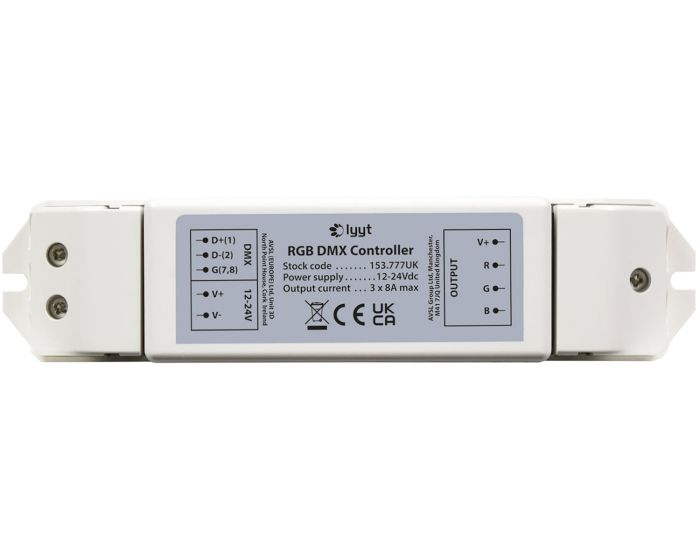

12-24V RGB DMX Controller 153.777UK by lyyt
Lyyt - 12-24v Rgb Dmx Controller
This DMX decoder is designed to convert the universal standard DMX512/1990 into analogue signal to control either 12V or 24V RGB LED tape. This model can drive 8A/channel and it simply assigns a colour per DMX channel. DC power input and colour channel outputs are connected via screw terminals. DMX input and through connection are also via screw terminals with the start address set by side mounted DIP switches. Powered by a 12V or 24V power supply, this decoder enables 3 channel DMX control of Red, Green and Blue output
Features
- 3 channel DMX control for RGB colour mixing
- 256 levels of brightness
- Up to 8A output per channel
- 12V or 24V operation
- Screw terminal DMX input
Technical Specifications
- Power supply : 12-24Vdc
- Power : max. : ?288W/12V?576W/24V
- Current consumption : 24A max.
- DMX channels : 3
- Output current : 3 x 8A max.
- Power connection : Screw terminals
- Output : Blue, Red, Green, V+
- Working temperature : -20?50?
- IP rating : IP20
- Dimensions : 170 x 30 x 40mm
- Weight : 92g
Brand | Lyyt |
---|---|
Barcode | 5015972222973 |
Manfacturer Code | 153.777UK |
