Mercury 100u Foamed Pe Coaxial Cable With Cca Braid - 100m White
£49.68
In stock
Only 100 left
SKU: 808.151UK
100U Foamed PE Coaxial Cable with CCA Braid - 100m White 808.151UK by mercury
Product Description
Mercury - 100u Foamed Pe Coaxial Cable With Cca Braid - 100m White

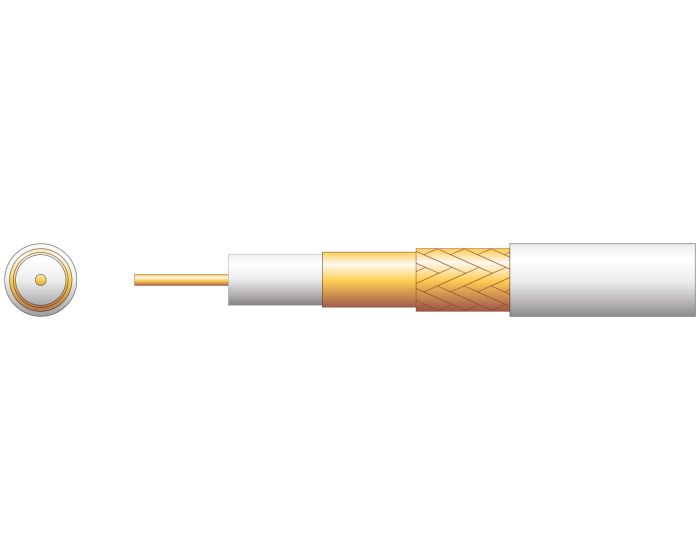

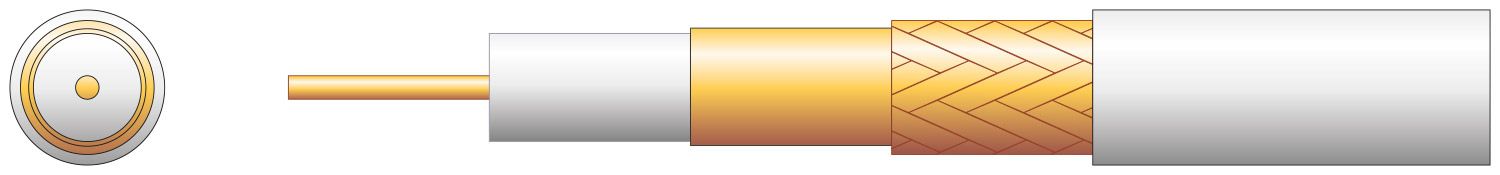

75 Ohms 100U coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, copper foil screen, copper clad aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it Can be used for digital, satellite and cable TV signal transmission.
Features
- Solid OFC conductor
- Foam filled PE dielectric
- Copper foil screen
- CCA braid
- Supplied in 100m or 250m reel with metric cut markers
Technical Specifications
- Conductor diameter : 1mmDia
- CSA : 0.79mm2
- Dielectric : 4.6mmDia foam PE
- Screen : Copper foil
- Braid : 64 x 0.12mmDia
- Cable : diameter : 6.6mmDia
- Impedance : 75 Ohms
- Capacitance : 54pF/m
- Velocity factor : 83%
- Return loss 5-400MHz : 28dB min./100m
- Return loss 450-1000MHz : 24dB min./100m
- Return loss 1000-2150MHz : 18dB min./100m
- Attenuation @ 5MHz : 1.8dB max./100m
- Attenuation @ 50MHz : 4.7dB max./100m
- Attenuation @ 100MHz : 6.6dB max./100m
- Attenuation @ 200MHz : 9.7dB max./100m
- Attenuation @ 400MHz : 14.6dB max./100m
- Attenuation @ 860MHz : 19.6dB max./100m
- Attenuation @ 1000MHz : 21.6dB max./100m
- Attenuation @ 1750MHz : 29.1dB max./100m
- Attenuation @ 2150MHz : 32.7dB max./100m
- Conductor material : Solid OFC
- Braid material : CCA
- Colour : White
- Length : 100m
- Weight : 4kg
Additional Information
- SKU
- 808.151UK
- Brand
- Mercury
- Barcode
- 5015972166871
- Manufacturer Code
- 808.151UK
