Mercury 2-way Wired Intercom

Mercury - 2-way Intercom

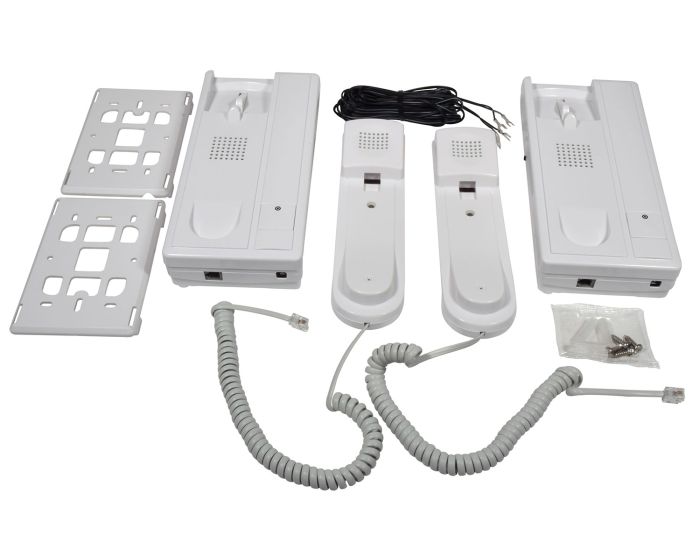

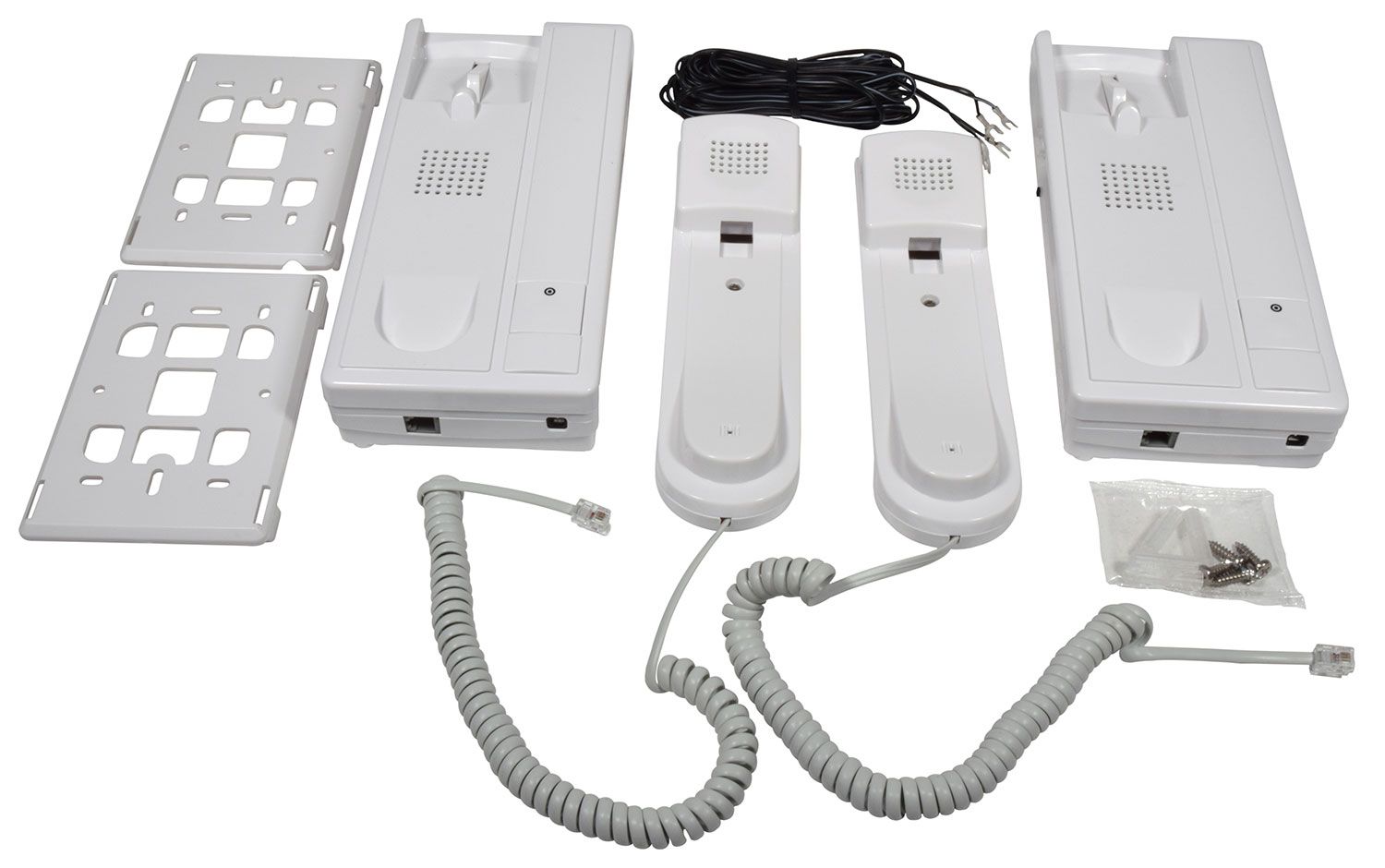

A two station, energy saving, telephone style intercom with a simple two wire connection, allowing 2-way conversation. It features a call button with adjustable call tone level. Both units are powered by 4x AA batteries (not supplied).

Features

• Can be free standing or wall mounted (brackets supplied)
• Maximum transmission range 200m
• Easy to set up and operate
• 8m of 2 wire connecting cable supplied (use 808.207UK for up to 100m distance)
• Both units require 4 x AA batteries (not supplied)

Technical Specifications

• Power supply : 6Vdc (4 x AA per unit)
• Sensitivity : <60mV?Frequency 1000 Hz)
• Frequency response : +3dB (300 Hz-3400 Hz)
• Current consumption : in use : <100mA
• Current consumption : standby : <5uA
• Range : 200m
• Dimensions : 210 x 92 x 68mm (each unit)
• Weight : 360g (per unit)
