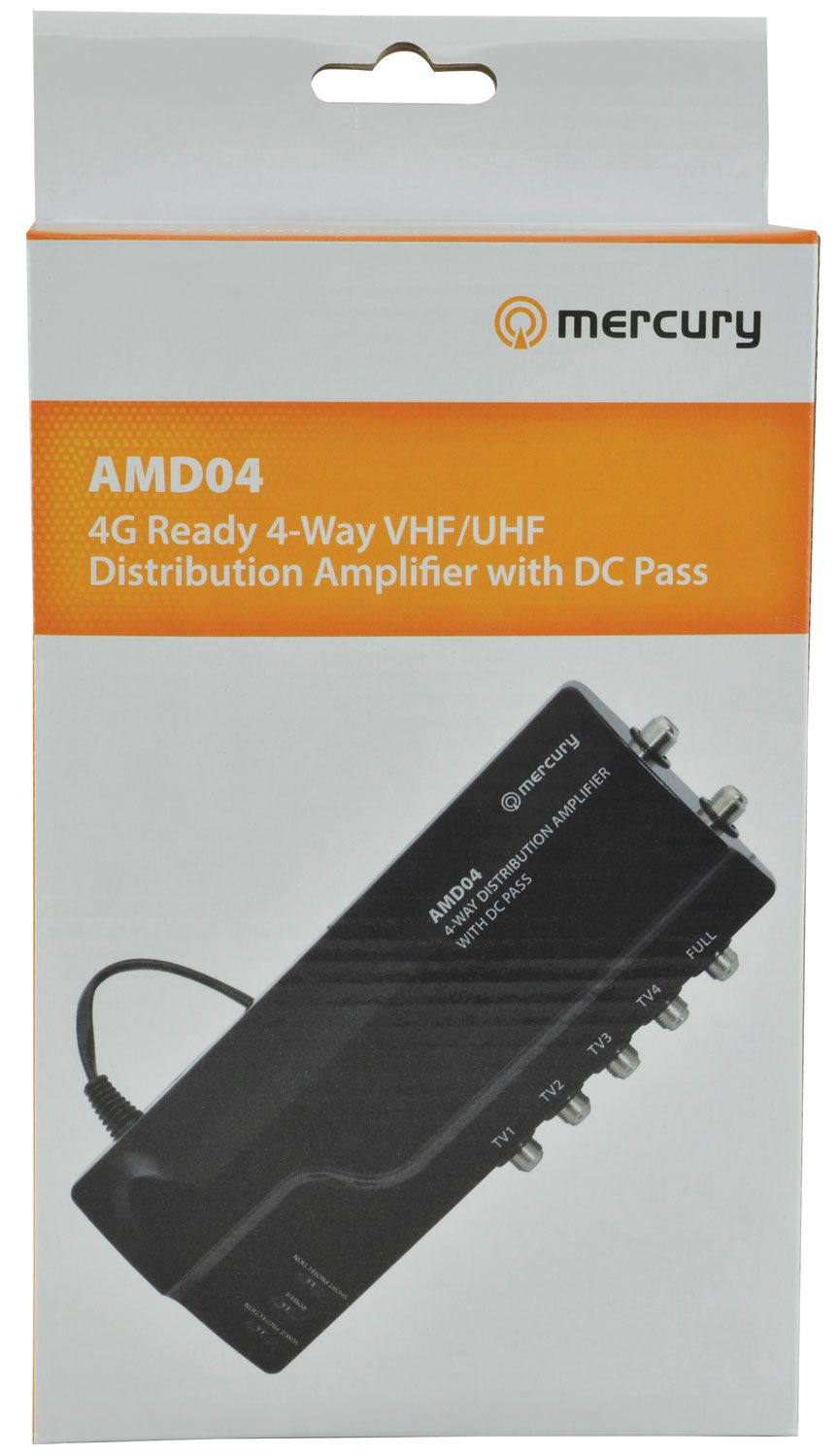

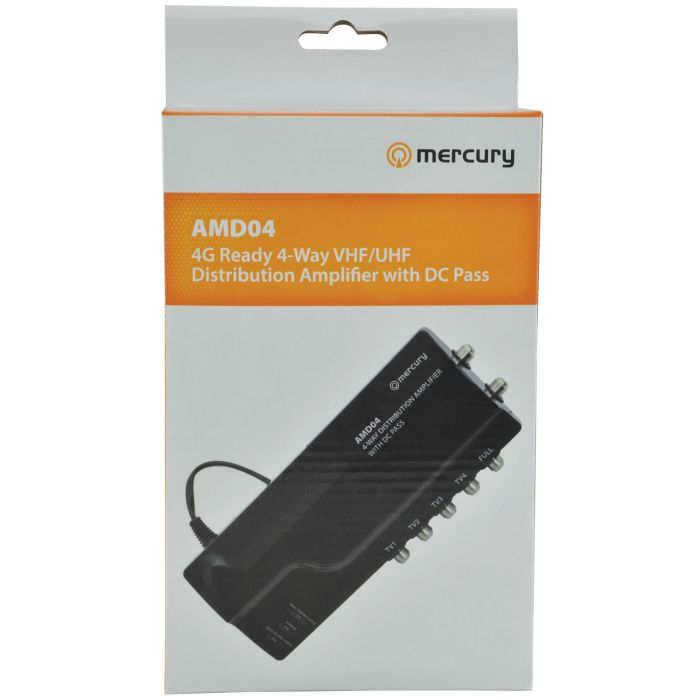

Mercury Amd04 4 Way Vhf/uhf Distribution Amplifier

Mercury Amd04 - 4 Way Vhf/uhf Distribution Amplifier

Distribution amplifiers with built in 5G/4G LTE filter, designed to improve the quality of audio and video by amplifying weak VHF/UHF signals and distributing them across a designated area. Can be used for both professional and domestic installations and fully compatible with Digital Terrestrial/Satellite/Cable TV and DAB/FM radio signals.

Features

• Integrated LTE signal filter avoids interference and channel loss from 5G & 4G mobile signals
• Separate inputs for VHF and UHF
• DC pass allows the control of satellite via Magic Eye remote extender (124.157UK)
• High gain output for additional distribution connection
• Built in surge and short circuit protection, and maximum output limiter prevents overload
• Built in low noise amplifier with wideband output
• Side mounted terminals allow easy cable management
• Coaxial socket connection, F socket adaptors included to allow F-Type connection
• Fully screened amplifier compatible with Digital Terrestrial/Satellite/Cable TV and DAB/FM radio signals

Technical Specifications

• Frequency range : VHF : 47 - 230MHz
• Frequency range : UHF : 470-694MHz(5G)
• Full gain output : 20dB
• Isolation : 22dB
• Noise : <3.8dB
• Input : 2 x coax sockets
• Power : 230Vac, 50Hz
• Impedance : 75 Ohms
• Cable : length : 1.0m
• Max. output level : 90dBuV
• Gain per split : 8dB
• Dimensions : 180 x 70 x 45mm
• No. of outputs : 4 + Full (5 x coax sockets)
• Weight : 350g
• Supplied with : 3pcs F-Type Adaptor
