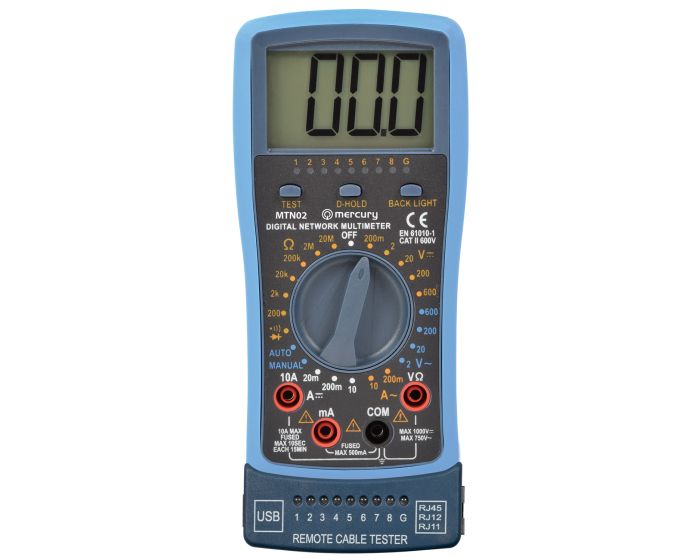

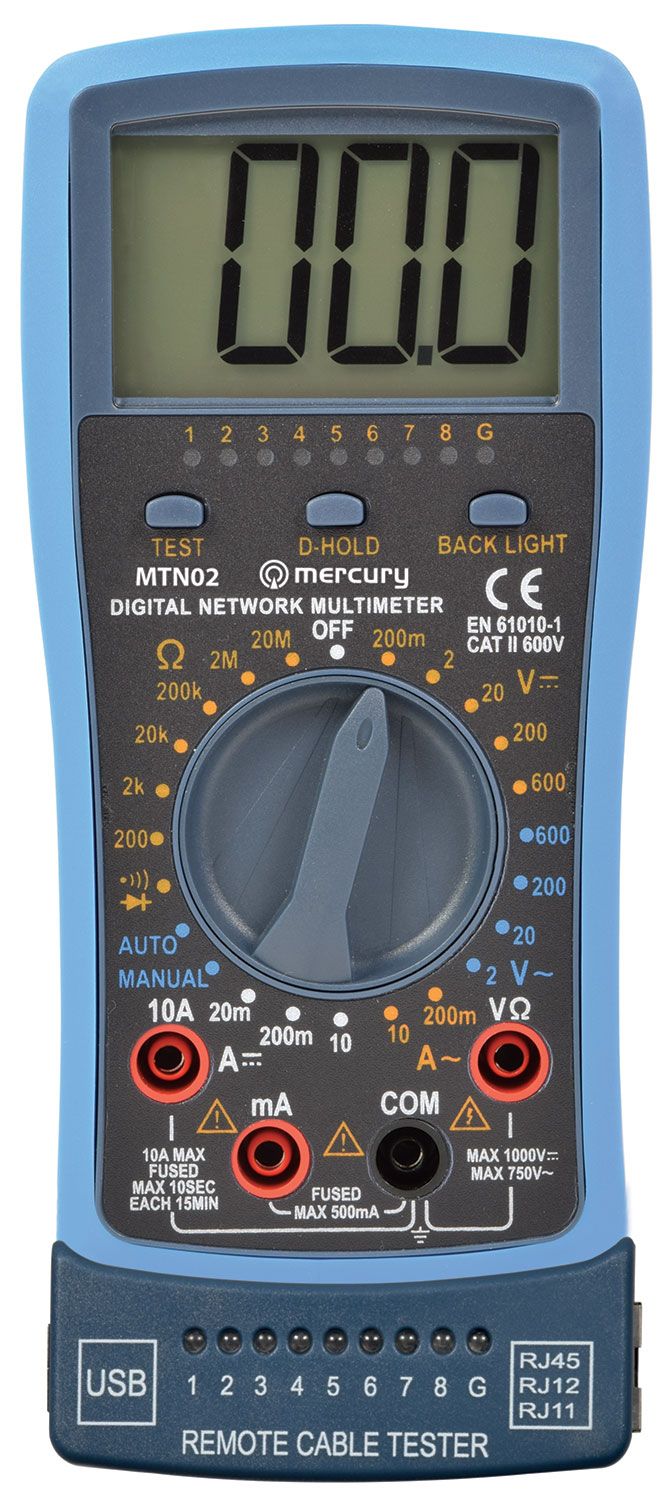

Mercury Mtn02 Professional Digital Multimeter With Network And Usb Cable Tester

Mercury Mtn02 - Professional Digital Multimeter With Network And Usb Cable Tester

A professional digital multimeter with network and USB tester that offers 23 testing ranges and 6 functions and comes supplied ready to use in a shockproof rubber holster with shrouded testing probes and battery. The cable testing function uses a sequence of LED's on the main unit and remote unit to test lengths of RJ11, RJ12, RJ45 or USB cables for continuity and wire/pin-related faults. The large 1.25" 3.5 digit LCD display is easy to read and comes with additional backlight for working in darker environments.

Features

• Network and USB cable test function with remote unit for RJ11, RJ12, RJ45 and USB
• 3.5 Digit, 1999 count large 1.25" LCD display with backlight
• 2V-600V AC Voltage, 200mV-600V DC Voltage, 10A AC/DC current and resistance ranges
• Diode and continuity test functions
• Low battery indicator
• Complies with EN61010 - 1:2010
• Supplied with shrouded test leads, shockproof rubber holster and 9V PP3 battery

Technical Specifications

• Power supply : 9Vdc (1 x PP3 supplied)
• AC current : 200mA - 10A
• DC current : 20mA - 10A
• AC voltage : 2V - 600V
• DC voltage : 200mV - 600V (Auto ranging)
• Resistance : 200 Ohms - 20M Ohms
• Test lead length : 1000mm
• Dimensions : 190 x 85 x 35mm
• Weight : 322g (including battery)
