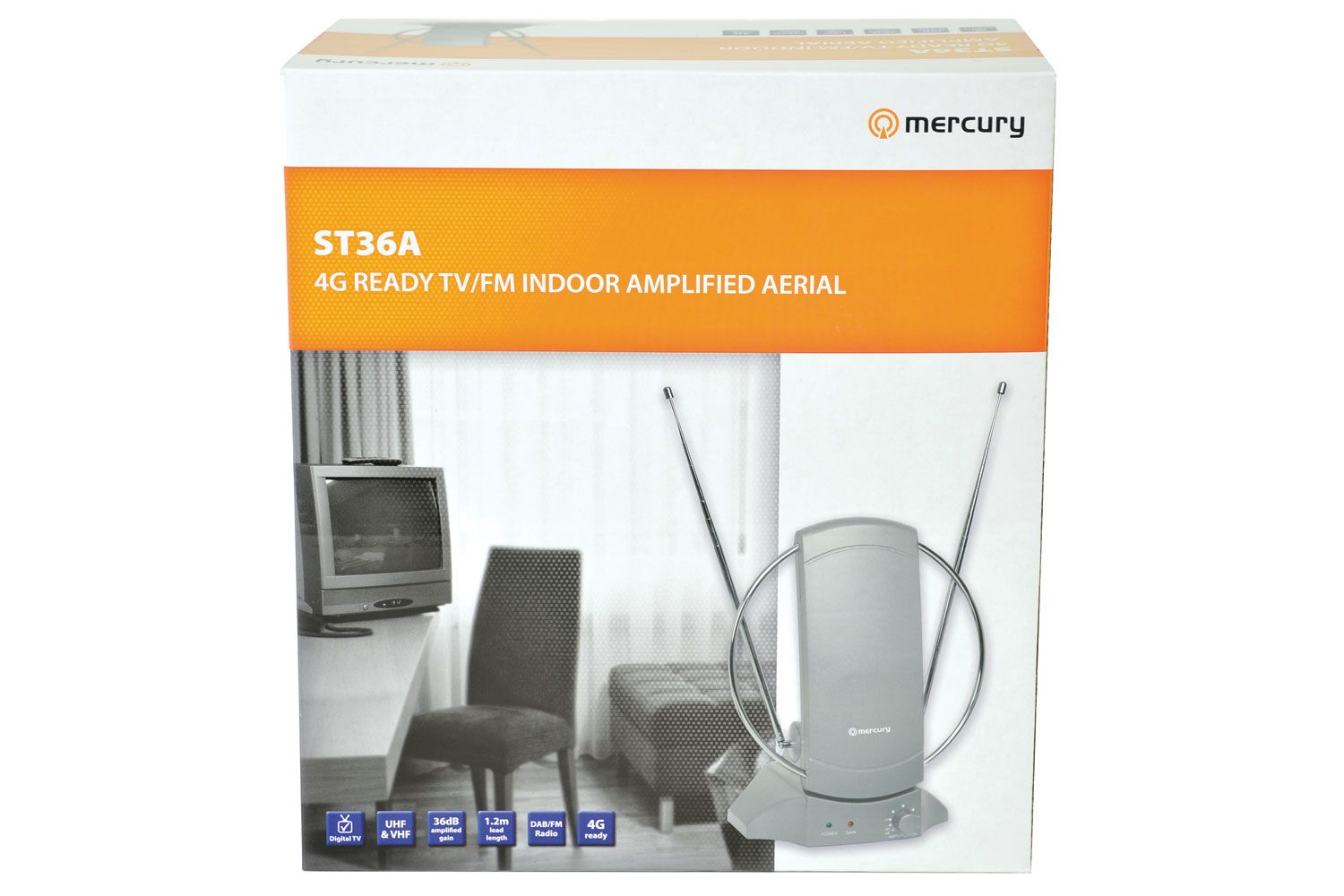

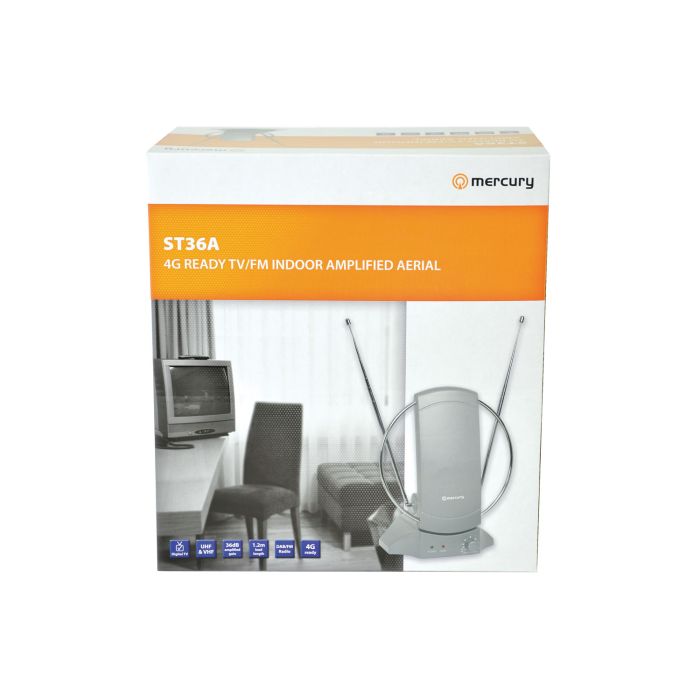

Mercury St36a Indoor Tv/fm Antenna With Amplifier

Mercury St36a - St36a Indoor Tv/fm Antenna With Amplifier

A mains powered indoor aerial with built-in high gain amplifier, compatible with Digital Terrestrial TV and DAB/FM radio signals. The unit features three adjustable antennas, a ring housed in a plastic arm which can be adjusted 90deg, and two telescopic antennas which extend up to 381mm in length and are fully adjustable. There is also a socket to connect an outdoor antenna to use the amplifier to boost the signal.

Features

• Built-in variable gain amplifier (36dB max) for areas with poor signal strength
• Fully adjustable telescopic antennas extend to 381mm
• On/Off and gain rotary control and LED indicators
• Compatible with Digital Terrestrial TV and DAB/FM radio signals within a 45-65 mile radius
• Integrated LTE signal filter avoids interference from 4G/5G mobile signals

Technical Specifications

• Power supply : 230Vac, 50Hz
• Frequency range : 47-694MHz(5G)
• Gain : UHF : 25 - 36dB
• Gain : VHF : 18 - 21dB
• Impedance : 75 Ohms
• Telescopic antenna : 2 x 381mm
• Weight : 650g
• Lead length : 1.2m
• Dimensions : 465 x 180 x 140mm
• Reception distance : Up to 65 miles
