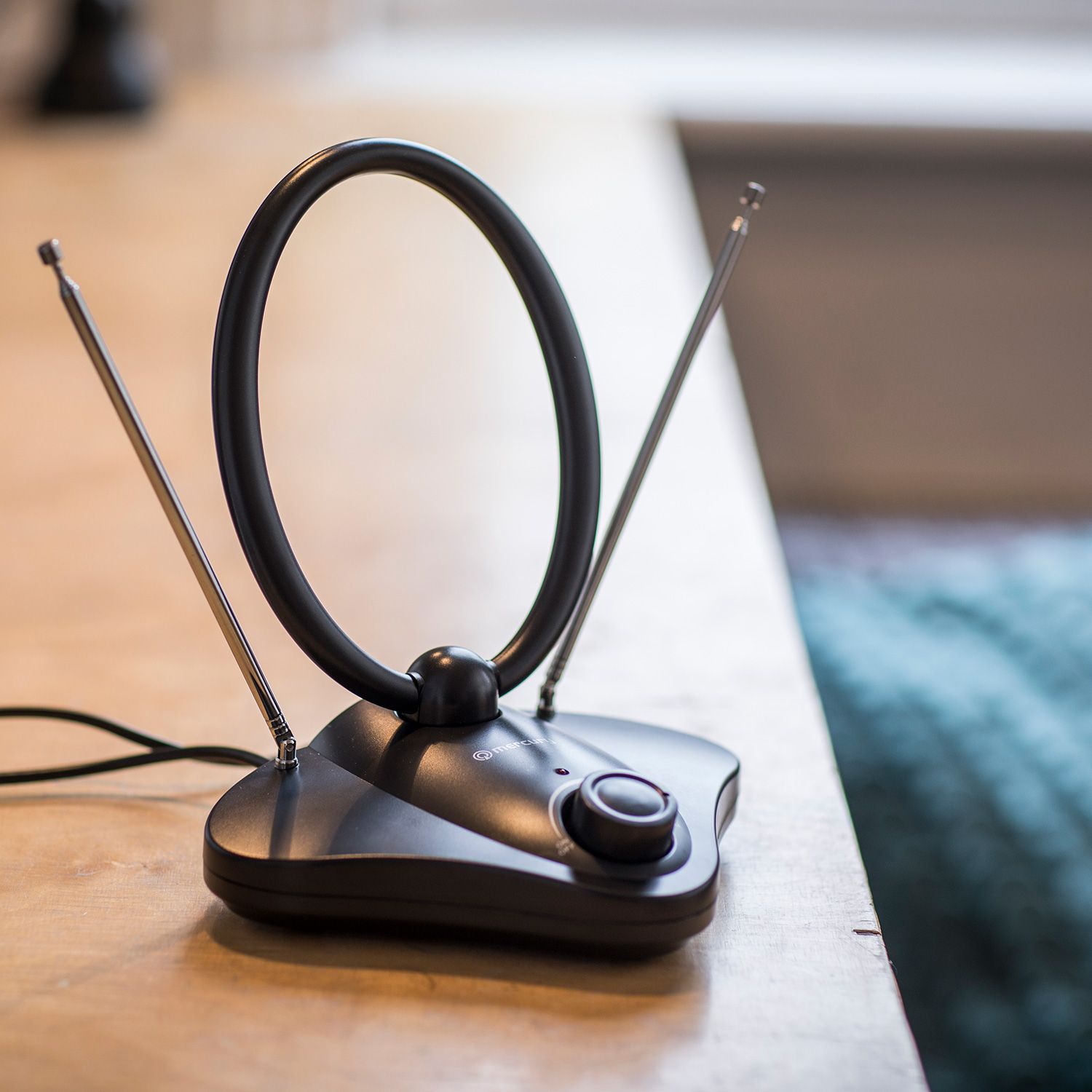

Mercury St36b Indoor Amplified Tv Aerial

Mercury St36b - St36b Indoor Amplified Tv Aerial

A mains powered, amplified aerial compatible with Digital Terrestrial TV and DAB/FM radio signals. With an adjustable loop aerial for UHF TV signals and two telescopic aerials for VHF and FM radio signals, providing maximum flexibility even in low signal areas. Gain can also be manually adjusted on the unit and there is an LED indicator showing power supply.

Features

• Variable gain control knob and Power LED indicator
• Compatible with Digital Terrestrial TV and DAB/FM radio signals within a 45-65 mile radius
• Built-in high gain low noise amplifier for areas with poor signal strength
• Adjustable loop aerial, pans and tilts for best UHF TV reception
• 2 x 728mm telescopic antennas for optimum VHF and FM radio reception

Technical Specifications

• Power supply : 230Vac, 50Hz or 12Vdc 50mA
• Gain : 36dB
• Frequency range : UHF : 470-862MHz
• Frequency range : VHF : 40-230MHz
• Impedance : 75 ohms
• Dimensions : 195 x 144 x 230mm
• Weight : 500g
• Current consumption : 50mA @12Vdc
• Lead length : 1.2m
• Reception distance : Up to 65 miles
