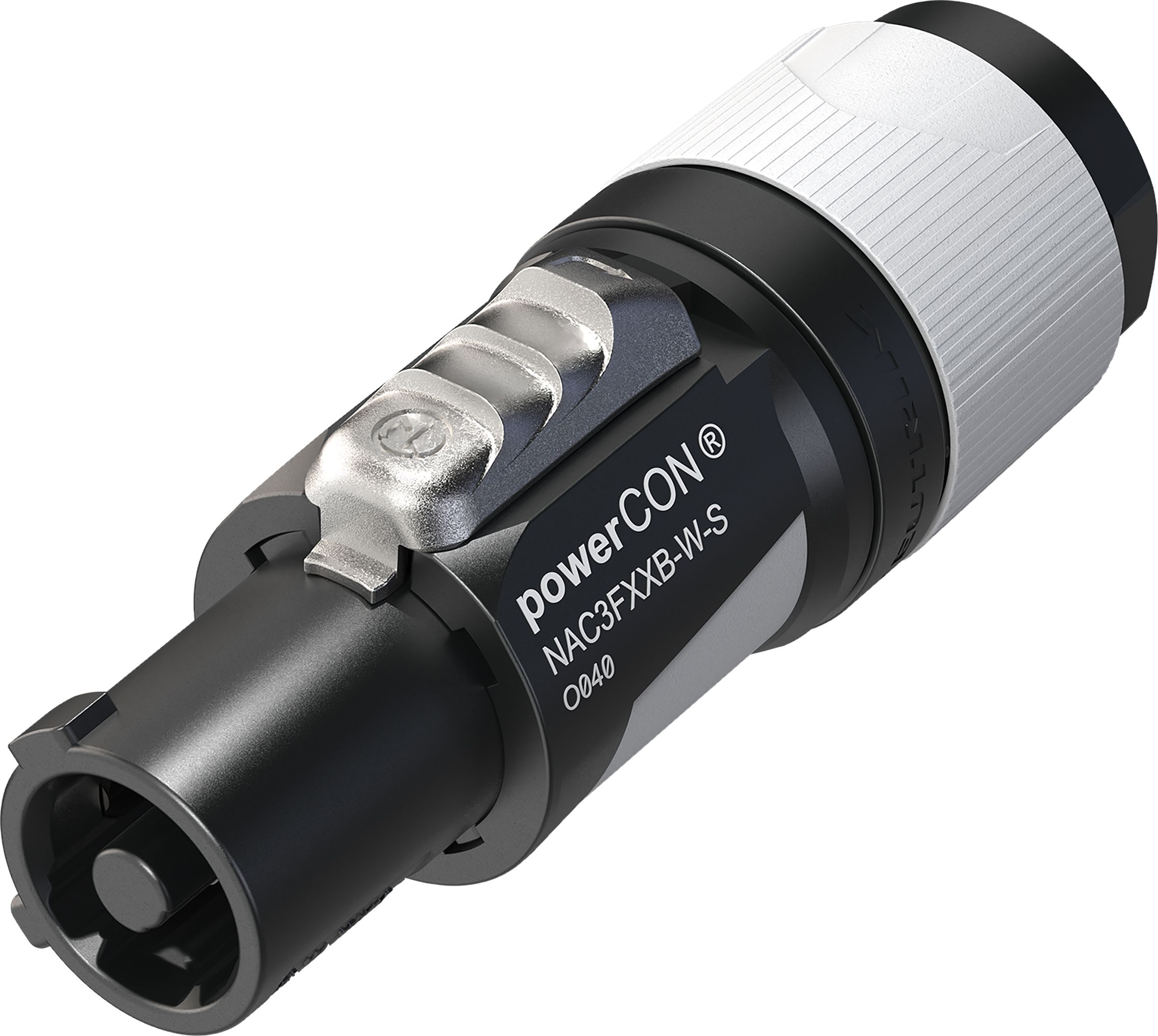

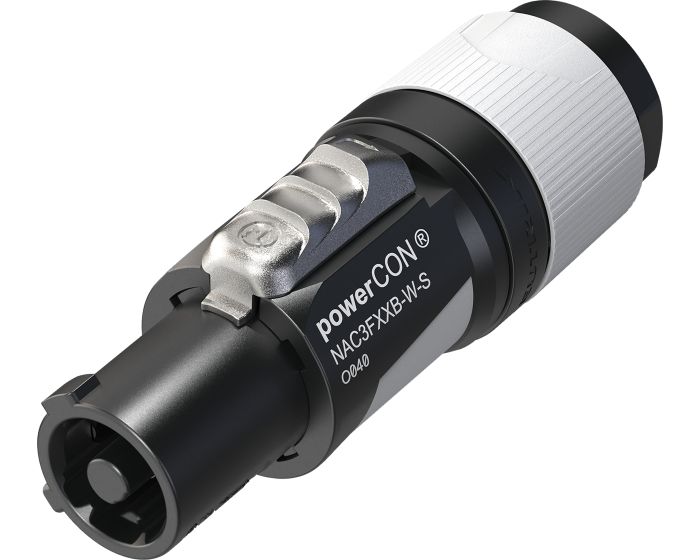

Neutrik NAC3FXXB-W-L PowerCON FXX Grey Cable 6-12mm
£12.00
In stock
Only 167 left
SKU
03-NE565
NE565, NEUTRIK
Neutrik NAC3FXXB-W-L PowerCON FXX Grey, Power Out, Large Cable Size 6-12mm
Locking AC mains cable connector, keyed and color coded (grey) for power-out, screw terminal assembly, for cable diameters 6 - 12 mm. The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection. (Requires a T8 Torx Driver to tighten the terminals, and a 22mm Spanner to undo the Plug ).
- IEC EN 60320-1 / UL 60320-1 / CSA aC22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1a
- Ergonomic design with slip-proof two-component molded housinga
- Power-in (blue) and p
- Product EAN 5021196850168
- Wire Size mm 1.5 - 2.5
- Product Dimensions (mm) 82.5 x 26.5
- Item priced per Each
- Warranty Period 1 Year
- Colour Black / Grey
- Max Cable Diameter (mm) 6-12mm
- Maximum total current (A) 16 A
- Number of Contacts 3
- Type Powercon Out
- IEC EN 60320-1 / UL 60320-1 / CSA aC22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1a
- Ergonomic design with slip-proof two-component molded housinga
- Power-in (blue) and p
Brand | Neutrik |
---|---|
Barcode | 5021196850168 |
Manfacturer Code | NE565 |
