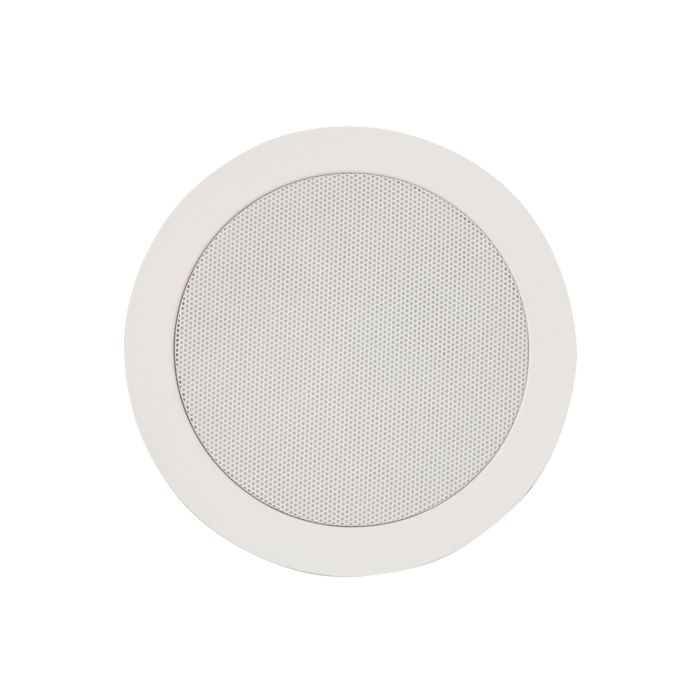

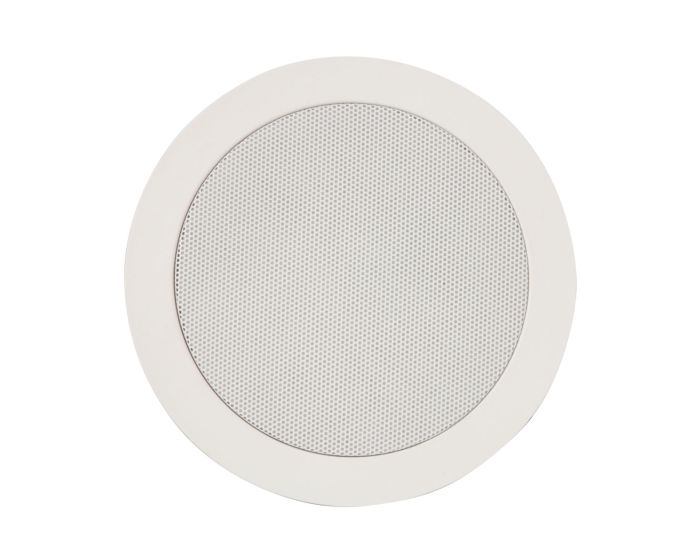

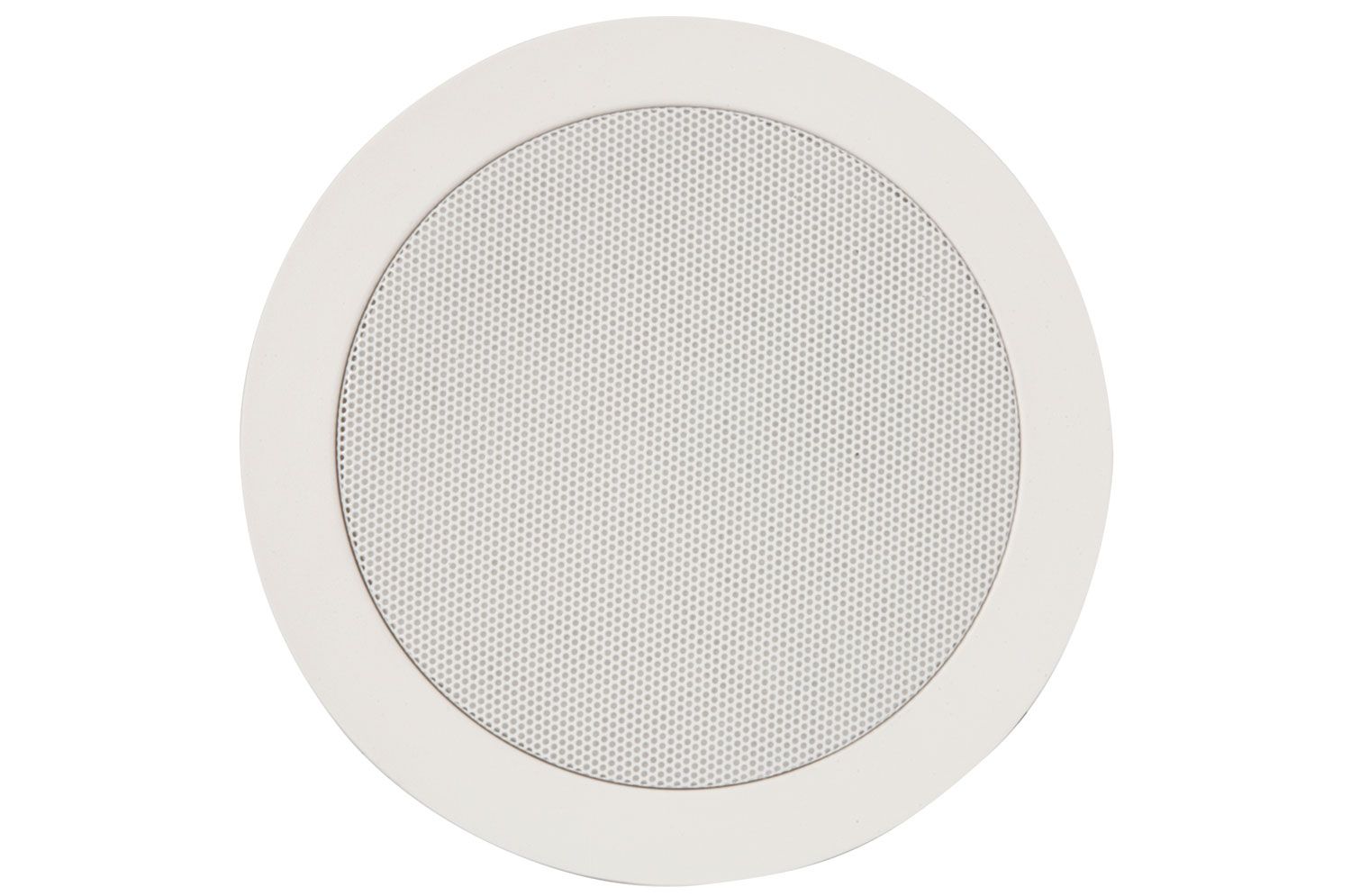

Adastra Cc5v ,100v Ceiling Speaker With Control ,5.25 Inch, 952.184UK

Adastra Cc5v - Cc5v 100v Ceiling Speaker With Control 5.25 Inch

2-way quick fit ceiling speakers with PP mica bass driver and directional dome tweeter giving an excellent frequency response, all housed in a white polymer frame with metal grille.

Features

• Rotary selector switch for 100V line tappings or 8 Ohms
• Fitted with "dog-ear" mounts for fixing to ceiling tiles 1-20mm in thickness
• Spring loaded terminals for easy connection

Technical Specifications

• Dispersion angle : 160Deg
• Frequency response : 85Hz - 20kHz
• Woofer : 133mmDia (5.25")
• Tweeter : 38mmDia (1.5")
• Power rms : 100V line : 20W
• Power rms : 8 Ohms : 40W
• Cutout : 166mmDia
• Mounting depth : 84mm
• SPL @ 1W/1m : 84dB (+/-2dB)
• Tappings : 2.5, 5, 10, 15, 20W & 8 Ohms
• Dimensions : 88 x 202mmDia
• Weight : 1.15kg
• Power max. : 8 Ohms : 80W
