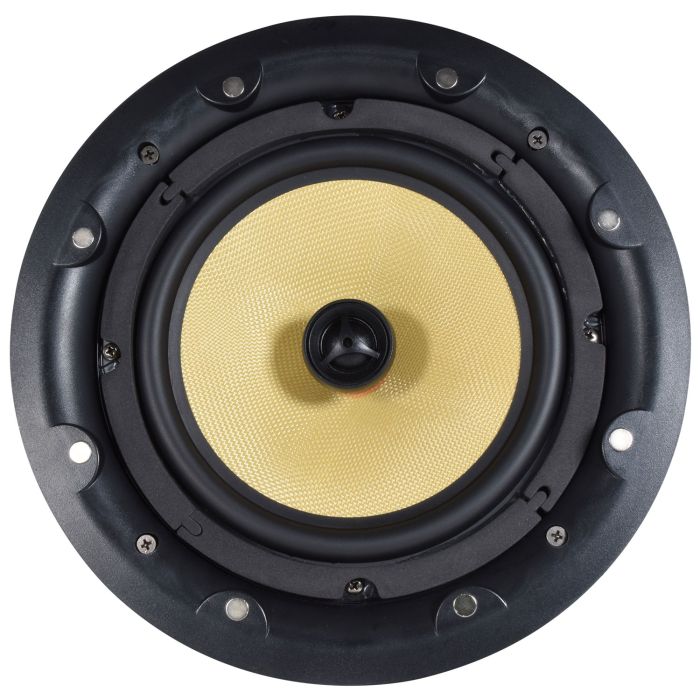

Adastra Kv8t Premium 100v Ceiling Speaker 40w

Adastra Kv8t - Kv8t Premium 100v Ceiling Speaker 40w

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV-T speaker is fitted with a 100V transformer with selectable volume tappings. High performance ceiling speakers to integrate with 100V voice and background music systems.

Features

• 3 x 100V volume tappings via 4-core cable
• Magnetic low profile steel grille
• 8 Ohm optional (bypass transfomer)
• Heavy duty glass-aramid cone
• Supplied individually

Technical Specifications

• Construction : ABS basket & powder coated steel grille
• Dispersion angle : 120Deg
• HF driver : 25mmDia (1") ASV diaphragm
• Impedance : 250, 500, 1.3k Ohms or 8 Ohms
• Tappings : 10W, 20W, 40W & 8 Ohms (80W)
• Magnet weight : 465g
• SPL @ 1W/1m : 90dB
• Max. SPL : 105dB
• Frequency response : 50Hz - 20kHz
• Cutout : 255mmDia
• Mounting depth : 110mm
• Dimensions : 110 x 281mmDia
