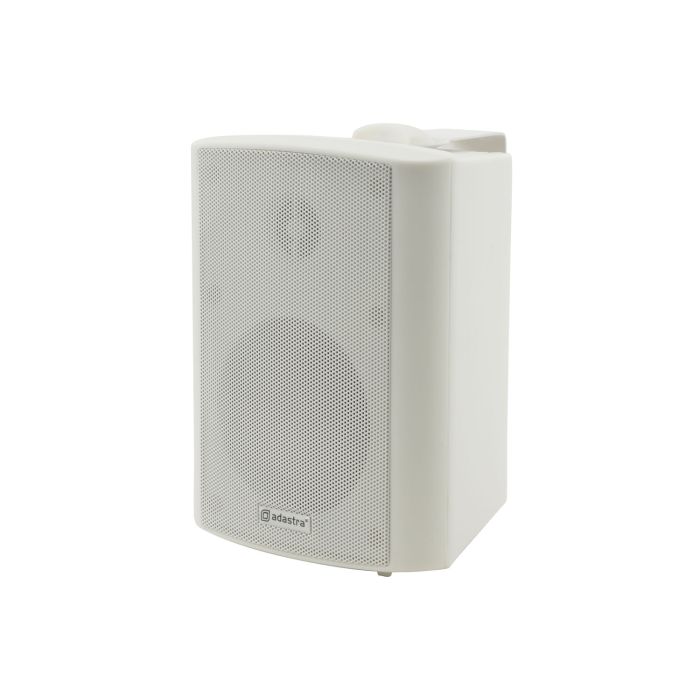

Adastra Bc4v-w 100v 4" Background Speaker White
£34.66
In stock
Only 50 left
SKU: 952.712UK
BC4V-W 100V 4" background speaker white 952.712UK by adastra
Product Description
Adastra Bc4v-w - Bc4v-w 100v 4" Background Speaker White
Industry standard 100V indoor speakers with ABS enclosures and a powder coated steel grille grille. Wall or ceiling surface mounting via the adjustable steel bracket. The trapezoidal design allows for the enclosures to be mounted neatly into corners or angled for directional coverage. Main drivers have high quality coated paper cones for full-sounding low and mid-range frequencies, ideal for music playback and clear voice announcements.
Features
- 2 way speaker system with crossover network
- Rotary selector switch for 100V line tappings or 8 Ohms operation
- Wall mounting bracket supplied
- Alternative M6 threaded mounting points
- Supplied singly
- Spring terminal connection
Technical Specifications
- Connection : Spring terminals
- Colour : White
- Woofer : 100mmDia (4'') reinforced paper cone
- Tweeter : 25mm (1'') balanced dome
- Frequency response : 110Hz - 20kHz
- Frequency response : 110Hz - 20kHz
- Power max. : 8 Ohms : 70W
- Power rms : 8 Ohms : 35W
- Tappings : 20W, 10W, 5W, 2.5W + 8 Ohms
- Dimensions : 150 x 195 x 150mm
- Weight : 1.63kg
- SPL @ 1W/1m : 88dB
- Model : BC4V-W
- Impedance : 100V : 500, 1k, 2k, 4k Ohms
Additional Information
- SKU
- 952.712UK
- Brand
- Adastra
- Barcode
- 5015972119068
- Manufacturer Code
- BC4V-W
