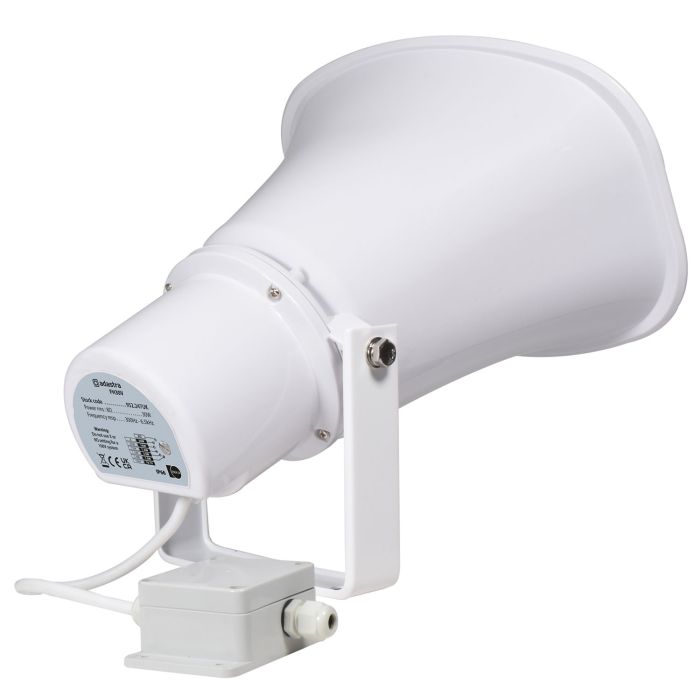

Adastra Fh30v Horn Speaker En54 100v - 30w Ip66

Adastra Fh30v - Fh30v Horn Speaker En54 100v - 30w Ip66

Moulded ABS weatherproof horn speakers with EN54-24 fire rating. Low impedance (8 Ohm) or 100V operation with switchable volume tappings (70V settings also included). Hard-wired with a fire-resistant cable and junction box, fitted with a ceramic screw terminal block and thermal fuse. Surface mounting via a stainless adjustable U-bracket. Designed for voice announcements and alerts in commercial PA installations.

Features

• IP66 weatherproof
• 5VB fireproof ABS material
• 100V, 70V or 8 Ohm operation
• EN54-24 fire systems certification
• Ceramic terminals and thermal fuse

Technical Specifications

• Construction : 5VB fire-rated ABS housing, stainless metal bracket
• IP rating : IP66
• Fire rating : EN54-24 certified
• Circuit protection : Thermal fuse
• Connection : Hard-wired fire-resistant cable, ceramic terminal block
• Power rms : 8 Ohms : 30W
• Tappings : 3.8W, 7.5W, 15W, 30W (100V) & 8 Ohms
• SPL @ 1W/1m : 113dB
• Frequency response : 300Hz - 6.5kHz
• Dimensions : 300 x 282 x 203mm
• Weight : 2.26kg
