Qtx Qx12a Active Speaker Cabinet
£187.06
Out of stock
SKU: 178.755UK
QX12A Active Speaker Cabinet 178.755UK by qtx
Product Description
Qtx Qx12a - Qx12a Active Speaker Cabinet

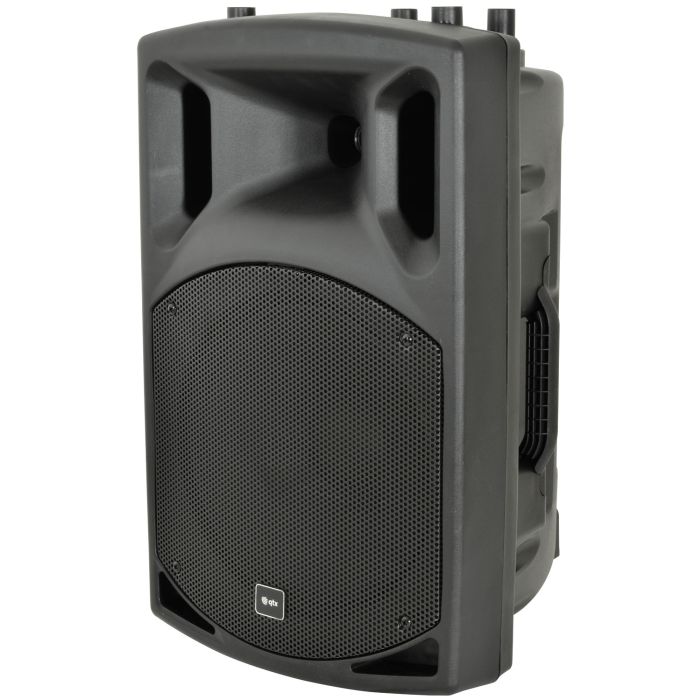

Active PA speaker units in a contemporary styled moulded ABS cabinet with integral carry handle and a constant directivity horn. The built-in mixer amplifier section delivers high output to the driver units to develop high SPLs.
Features
- Built-in amplifier with mixer section
- Lightweight ported cabinet
- Titanium compression driver
- 35mm Dia internal top hat
- Mic/line inputs with volume controls
- Tone controls
Technical Specifications
- Power supply : 230Vac, 50Hz (IEC)
- THD : 0.1%
- SNR : 87dB
- Dispersion : 90Deg x 60Deg (H x V)
- Impedance : 4 Ohms
- HF driver : 38mm Ti compression driver
- SPL @ 1W/1m : 101dB
- Crossover frequency : 3.5kHz
- Max. SPL : 127dB
- Power rms : 200W
- Power max. : 400W
- LF driver : 300mm (12")
- LF driver : coil size : 52mmDia
- HF driver : coil size : 25mmDia
- Frequency response : 45Hz - 20kHz
- Dimensions : 345 x 565 x 320mm
- Weight : 13.2kg
- Inputs : Mic (combo), Line (RCA)
Additional Information
- SKU
- 178.755UK
- Brand
- QTX
- Barcode
- 5015972148365
- Manufacturer Code
- QX12A
