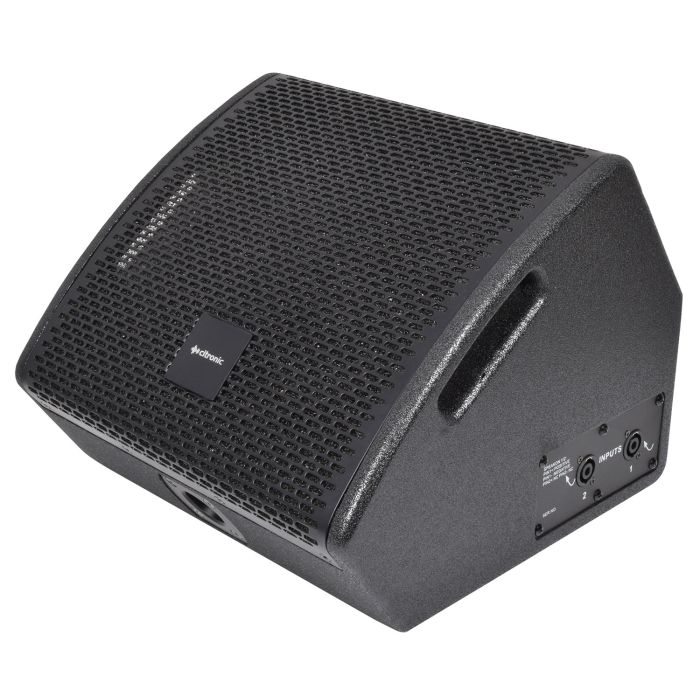

Citronic Cm10 Passive Wedge Monitor Foldback Speaker

Citronic Cm10 - Cm10 Passive Wedge Speaker 250wrms

Passive wedge speaker in a durable, texture coated plywood cabinet with minimal footprint. The 10" main driver delivers punchy low frequencies with the help of 2 bass ports and a concentric titanium tweeter is mounted within the main driver for perfectly aligned, sparkling high frequencies. An arched powder-coated steel grille provides heavy duty protection from the rigours of stage performances and forms 2 side handle holes for easy portability. A pair of twist-lock SPK connectors are wired in parallel to accept input from an amplifier and enable connection onto a further CM10 speaker if required. The compact size and high power handling means that this is a very capable unit for stage foldback but can equally serve as a compact PA speaker, thanks to its 35mm pole-mount socket and M8 flying points.

Features

• Concentric HF driver
• Compact cabinet with minimal footprint
• 2 side handles and 35mm pole-mount socket
• 250Wrms power handling (450W peak)

Technical Specifications

• Main driver : 250mmDia (10") with concentric tweeter
• Impedance : 8 Ohms
• Voice coil : 50mmDia (2")
• Magnet weight : 1.13kg (40oz)
• HF driver : 44mmDia (1.75") Ti compression driver
• Power handling : rms : 250W
• Power handling : peak : 450W
• Inputs : 2 x SPK connectors (parallel pins 1+/-)
• Frequency response : 65Hz - 20kHz
• Sensitivity : 95dB
• Dimensions : 355 x 350 x 275mm
• Weight : 8.636kg
