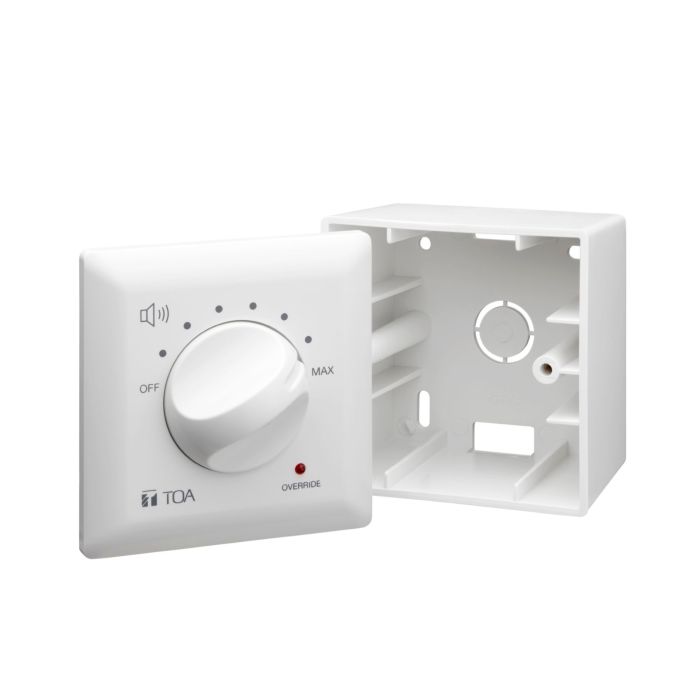

Toa AT-4060B 60W 100v Line Volume Attenuator
£39.60
In stock
Only 1 left
SKU: 03-TOA009
Flush mount 100 V line attenuator with 8 settings. The product features push-in terminals each of which will accept two conductors for easy bridging.
Product Description
Designed with ergonomics in mind, the control knob comes in a size that provides a comfortable grip and excellent control with every turn. Consisting of 8-step attenuation, the 100v Attenuator is built to provide precision volume control with a difference of 3 dB in every step. The built-in overriding relay feature allows emergency paging which is indicated by the LED light when activated.
Features
- 8-step attenuation level control (+/-3 dB)
- Ergonomic control knob with better grip for easy turn
- 24 VDC overriding relay with red LED indicator
- Terminal block for thicker diameter cable
- Clip-on face plate
- 2- / 3- / 4-wire system
- Surface or flush mount
- Glossy finish in white
- Product EAN 5021196167723
- Override Indicator Red LED (4-wire connection only)
- Overriding Voltage 24 V, 11 mA DC (4-wire connection only)
- Terminal Screw-type x 5
- Usable Cable Cable range 22 - 14 AWG
- Colour White
- Product Dimensions (mm) 86 x 86 x 51 mm
- Attenuation 8 steps ( 0 dB, -3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, OFF )
- Peak Music Power (W) 30
- Finish : Knob, Cover Panel: ABS Resin, White (RAL9016 or equivalent) / Front Panel: Surface treated steel plate
Additional Information
- SKU
- 03-TOA009
- Brand
- Toa
- Barcode
- 5021196167723
- Manufacturer Code
- TOA009
