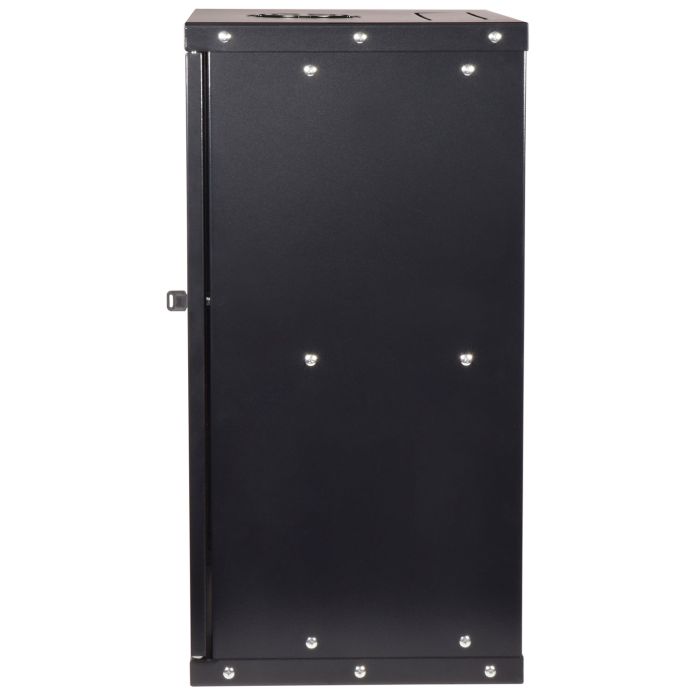

Adastra Rc12u300 12u Shallow Rack Wall Cabinet

Adastra Rc12u300 - 12u Shallow Rack Wall Cabinet

Wall mountable powder-coated steel cabinets for rack-mounting 19" equipment in light duy applications. A choice of 2 mounting positions for the front rack-mounting rails can accommodate a mounting depth of up to 280mm, or a shallower 220mm depth with space for protruding connectors in front. A glass window front door can be hinged either side and is fitted with a lock for security. A low profile solution for shallower rack equipment such as patch panels, wireless microphone receivers, mixers and smaller amplifiers.

Features

• Wall-mounting keyhole punch-outs on the rear panels
• Knock-out apertures top and bottom for cable entry
• Front and rear rack rails for securing equipment or shelves
• Rack-mounting hardware supplied
• Lockable toughened glass front door

Technical Specifications

• Width : 550mm
• Depth : 300mm
• Construction : 1.2mm cold-rolled steel + tempered glass door
• Max. load : 30kg (static)
• Mounting depth : 200mm (255mm front rail to wall)
• Rack capacity : 12U
• Height : 590mm
• Weight : 12.56kg
