Mercury Eco Rg6 Air Spaced Pe Coaxial Cable With Aluminum Braid - 100m White
£23.28
In stock
Only 100 left
SKU: 808.119UK
Eco RG6 Air Spaced PE Coaxial Cable with Aluminum Braid - 100m White 808.119UK by mercury
Product Description
Mercury - Eco Rg6 Air Spaced Pe Coaxial Cable With Aluminum Braid - 100m White

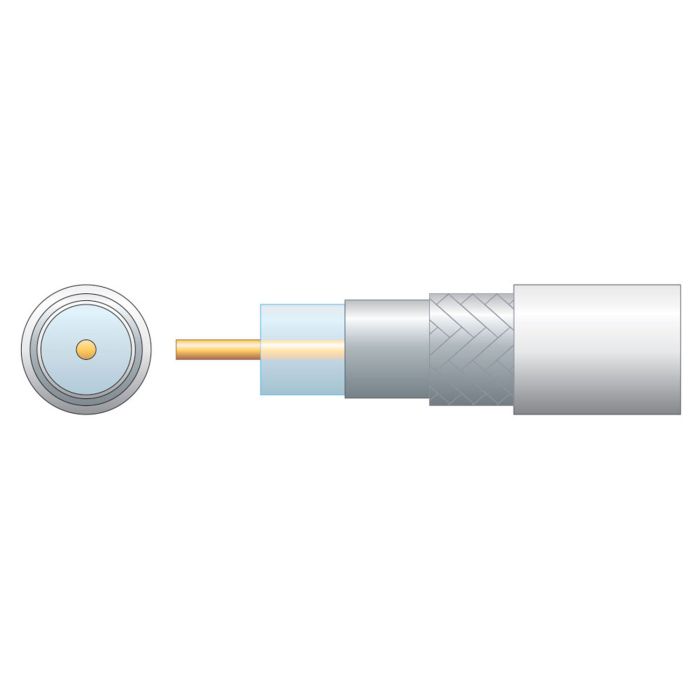

75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, air spaced polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it Can be used for digital, satellite and cable TV signal transmission.
Features
- Solid CCS conductor
- Air spaced PE dielectric
- Binded aluminium screen
- Aluminium braid
- Supplied in 100m reel with metric cut markers
Technical Specifications
- Conductor diameter : 1mmDia
- CSA : 0.79mm2
- Dielectric : 4.6mmDia air spaced PE
- Screen : Aluminium / PET foil
- Braid : 48 x 0.12mmDia
- Cable : diameter : 6.6mmDia
- Impedance : 75 Ohms
- Capacitance : 54pF/m
- Velocity factor : 83%
- Length : 100m
- Weight : 4.1kg
- Return loss 5-400MHz : 24dB min./100m
- Return loss 450-1000MHz : 20dB min./100m
- Return loss 1000-2150MHz : 16dB min./100m
- Attenuation @ 5MHz : 2.9 dB max./100m
- Attenuation @ 50MHz : 5.2 dB max./100m
- Attenuation @ 100MHz : 6.9 dB max./100m
- Attenuation @ 200MHz : 10.2 dB max./100m
- Attenuation @ 400MHz : 14.9 dB max./100m
- Attenuation @ 860MHz : 20.3 dB max./100m
- Attenuation @ 1000MHz : 22.5 dB max./100m
- Attenuation @ 1750MHz : 29.8 dB max./100m
- Attenuation @ 2150MHz : 33.6 dB max./100m
- Conductor material : Solid CCS
- Braid material : Aluminium
- Colour : White
Additional Information
- SKU
- 808.119UK
- Brand
- Mercury
- Barcode
- 5015972166635
- Manufacturer Code
- 808.119UK
