Mercury Amd06 6 Way Vhf/uhf Distribution Amplifier
£31.13
Out of stock
SKU: 130.032UK
6 Way VHF/UHF Distribution Amplifier 130.032UK by mercury
Product Description

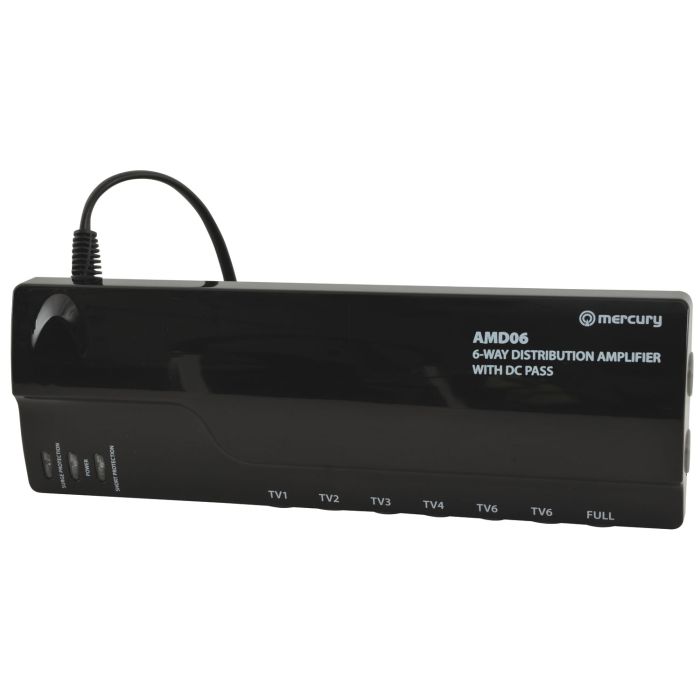

Mercury Amd06 - 6 Way Vhf/uhf Distribution Amplifier
Distribution amplifiers with built in 4G LTE filter, designed to improve the quality of audio and video by amplifying weak VHF/UHF signals and distributing them across a designated area. Can be used for both professional and domestic installations and fully compatible with Digital Terrestrial/Satellite/Cable TV and DAB/FM radio signals.
Features
- Fully screened amplifier compatible with Digital Terrestrial/Satellite/Cable TV and DAB/FM radio signals
- Integrated LTE signal filter avoids interference and channel loss from 4G mobile signals
- Coaxial socket connection, F socket adaptors included to allow F-Type connection
- Built in low noise amplifier with wideband output
- Built in surge and short circuit protection, and maximum output limiter prevents overload
- High gain output for additional distribution connection
- Separate inputs for VHF and UHF
- DC pass allows the control of satellite via Magic Eye remote extender (124.157UK)
- Side mounted terminals allow easy cable management
Technical Specifications
- Frequency range : VHF : 47 - 230MHz
- Frequency range : UHF : 470 - 790MHz
- Full gain output : 20dB
- Impedance : 75 Ohms
- Isolation : 22dB
- Noise :
Additional Information
- SKU
- 130.032UK
- Brand
- Mercury
- Barcode
- 5015972146743
- Manufacturer Code
- AMD06
